DESCRIPTION

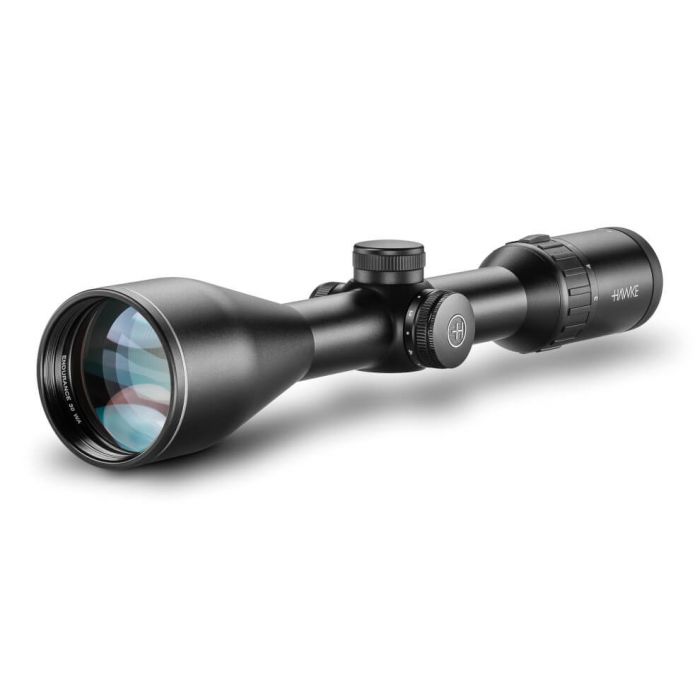

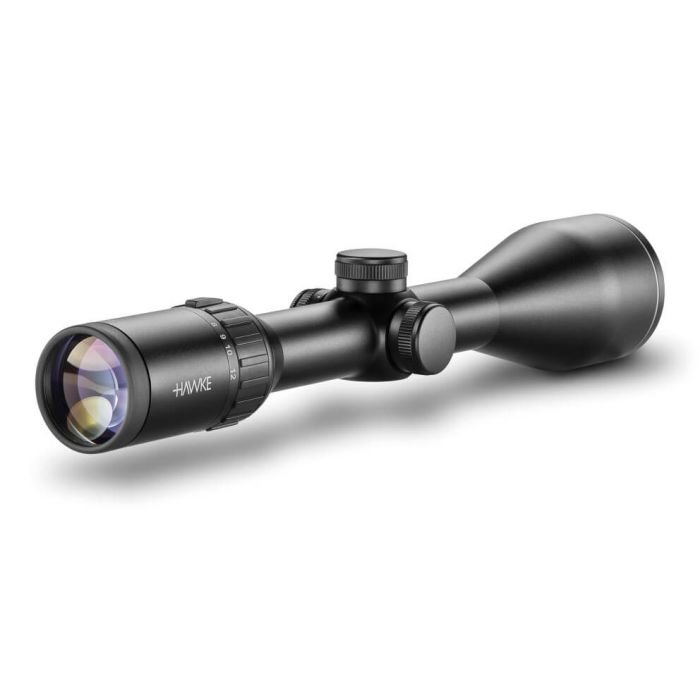

The Hawke Endurance 30 WA 3-12X56mm IR LR DOT Riflescope sports LR Dot reticle which was developed around a typical centrefire trajectory, like the .308 Winchester round, which is popular around the world for shooting fairly large game. It also suits some of the faster bullets that might be used for hunting foxes and similar quarry. Many hunters like to use the same magnification for the rifle scope as their binoculars so the LR Dot reticle markings were designed at 8x magnification.
This design also makes it suitable for European shooters who might prefer a metric set of figures and therefore to zero their rifle in for 100 metres on the centre crosshair and use the lower aim points for 200, 300, 400 and 500 metres. At 8× magnification, the thick posts to the right and left of the centre dot would bracket the body length of a Roe deer at 100yds, a popular sized animal to hunt with this type of reticle.

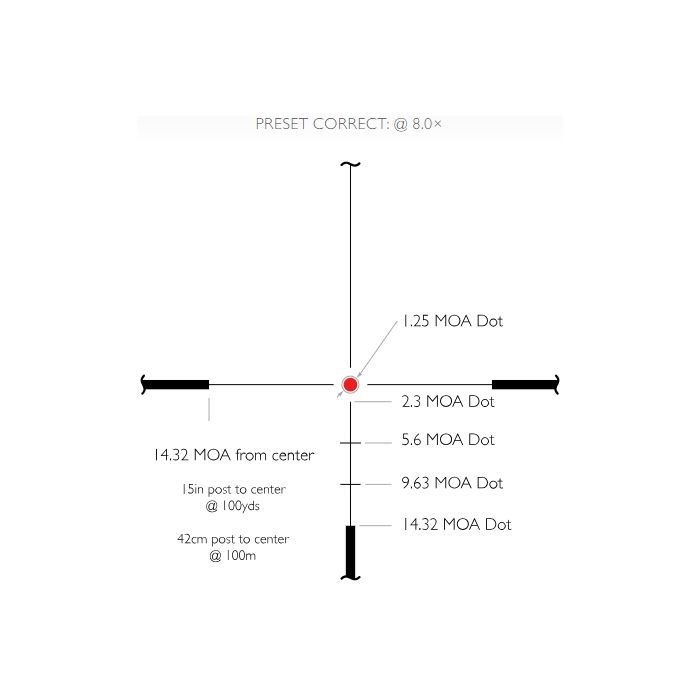

A variant of the classic L4 reticle, the LR Dot (8×) uses a more open outer post design to keep more of the target visible while aiming and offers extra aim points for holdover. The thick outer posts make visibility easy when hunting in low-light conditions. A fine upper post doesn’t obstruct your view of the target.
FEATURES
- Wide Angle optical system
- Long 4′ Eye Relief
- 18 layer Fully Multi-Coated optics for exceptional clarity
- Fixed parallax distance of 100 yards / 91 metres
- 30mm mono-tube chassis for superior strength
- Glass etched reticle with red illumination
- 6 levels of brightness with off positions in-between
- 1/4 MOA low-profile no-snag fingertip turrets
- Fast focus eyebell and high torque zoom ring
- Threaded objective for optional accessories
SPECIFICATIONS
Length | 347mm (13.7″) |
Weight | 635g (22.4oz) |
Eye relief | 102mm (4″) |
Focus/Parallax – Fixed Focus | 91m – Infinity (100yds – Infinity) |
Field of View | 13.8 – 3.5m @ 100m (41.5 – 10.4ft @ 100yds) |
Exit Pupil | 18-5mm (0.7-0.2″) |
Chassis | 30mm Mono-tube |
Optical System | 3-12x |
Objective | 56mm |
Illumination | Red |
Reticle | LR Dot |
Elevation Increment | 1/4 MOA |
Elevation Adjustment Range | 110 MOA |
Windage Increment | 1/4 MOA |
Windage Adjustment Range | 110 MOA |
Material | Aluminium |
Ocular Type | Fast Focus |
Lens Coating | Fully Multi-Coated – 18 Layers |
Power Selector Style | Rubber Coated Posi-Grip |
Focal Plane | Second Focal Plane (SFP) |
Turret Caps | Yes |
Turret Type | Low Profile |
