DESCRIPTION
The Hawke Frontier SF IR FFP 4-20x50mm Riflescope is a 21 layer Fully Multi-Coated 5x ratio optical system featuring a First Focal Plane optical system, Side Focus control for parallax adjustment to infinity with long eye relief for high recoil and magnum calibres and 6 levels of brightness with off positions in-between. Supreme accuracy for rifle shooting, driven and hunting applications.

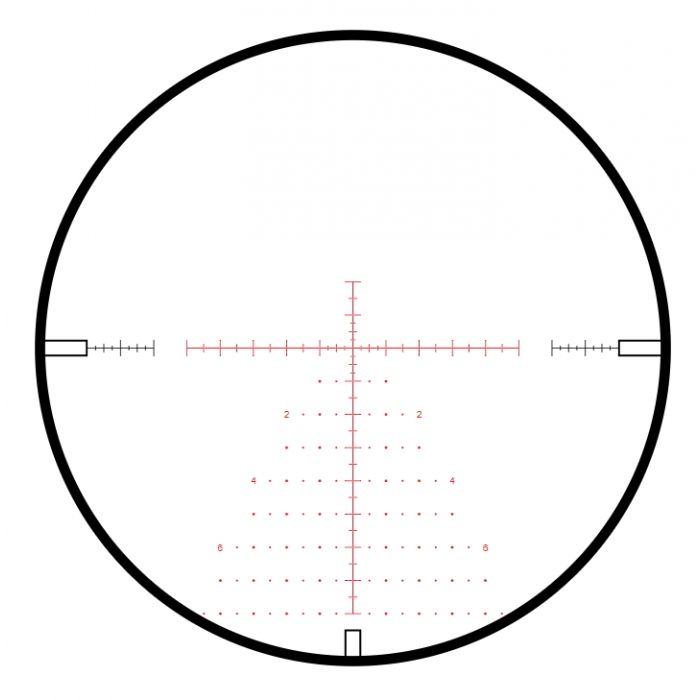

Featuring a 30mm mono-tube chassis for superior strength and glass etched reticle with red illumination. The FFP Mil Pro reticle was developed specifically for first focal plane optical systems and based around the common principles of Mil spaced reticles. With half Mil spaced markings extending out to 10 Mil of holdover, the FFP Mil Pro is a versatile reticle that provides aim points no matter how extreme the distance. All reticle measurements are Mil spaced and offer 1 Mil, 0.5 Mil and 0.25 Mil brackets for range finding. Every second Mil spacing on the lower section is numbered to ensure quick and easy acquisition of target and ease of reference.
Each cross has a see-through gap, allowing an unobstructed view of the target. The thick outer posts are hollowed to ensure they can be seen at all magnifications, without blocking out too much of the view. The FFP Mil Pro 20x has additional 1/4 Mil aim points on the center section of the reticle to give even greater precision.
FEATURES
- Patented Exposed Zero Lock N Stop Elevation Turret
- First Focal Plane (FFP)
- 30mm Mono-Tube Chassis
- Side Focus
- Illumination
- Wide Angle FOV
- High Volume Eyebox
- 100mm Eye Relief
- Multi-LED High Intensity Reticle
- High Grade, Low Dispersion Crown Glass
- 21 Layer Fully Multi-Coated Lenses
- Zoom Magnification Throw Lever (Removable)
- Fast Focus Eyebell with Lock Ring
- Supplied With Professional Metal Flip-Up Covers.
SPECIFICATIONS

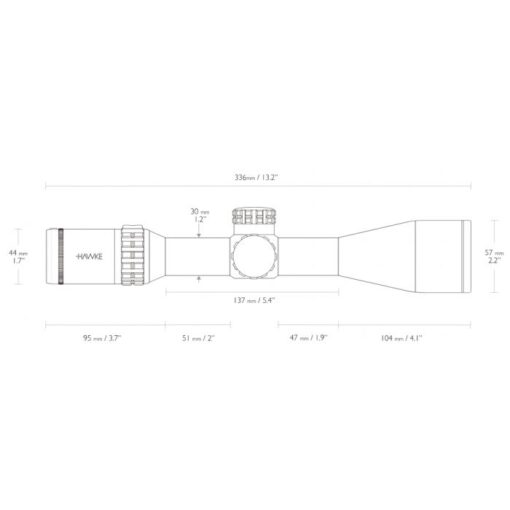

Length | 336mm (13.2) |
Weight | 630g (22.2oz) |
Eye relief | 102mm (4) |
Field of View | 9.4 – 1.9m @ 100m (28.5 – 5.7ft @ 100yds) |
Exit Pupil | 12.5-2.5mm (0.49-0.1) |
Chassis | 30mm Mono-tube |
Optical System | 4-20x |
Objective | 50mm |
Illumination | Red |
Reticle | Mil Pro |
Elevation Increment | 1/10 MRAD |
Elevation Adjustment Range | 23 MRAD |
Windage Increment | 1/10 MRAD |
Windage Adjustment Range | 23 MRAD |
Material | Aluminium |
Ocular Type | Locking Fast Focus |
Lens Coating | Fully Multi-Coated – 21 Layers |
Power Selector Style | Removable Zoom Lever |
Focal Plane | First Focal Plane (FFP) |
Turret Caps | No |
Turret Type | Exposed Zero Lock ‘n’ Stop Turrets (Patented) |
