– Overview –

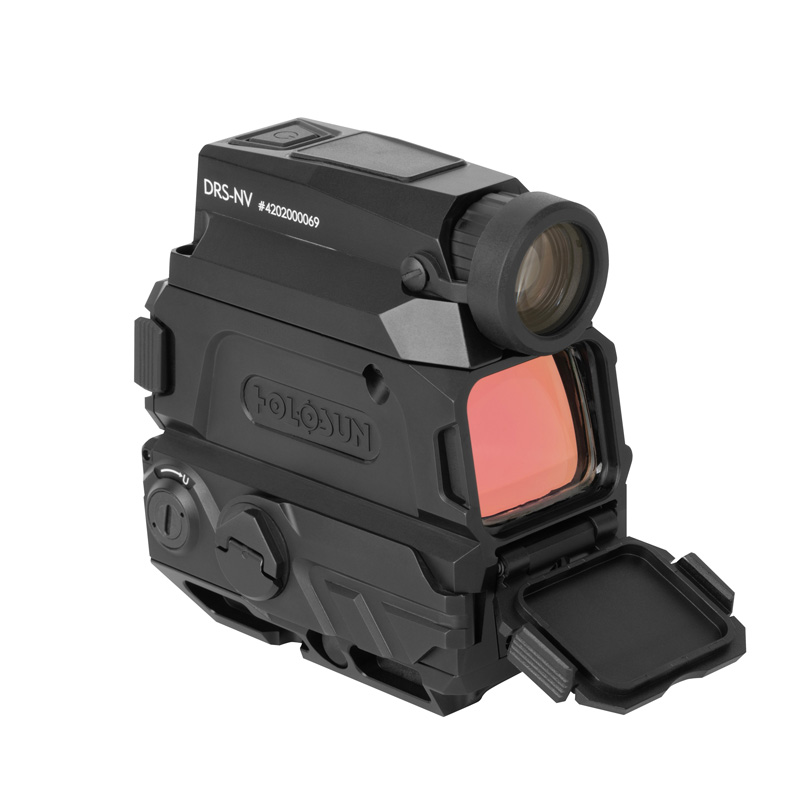

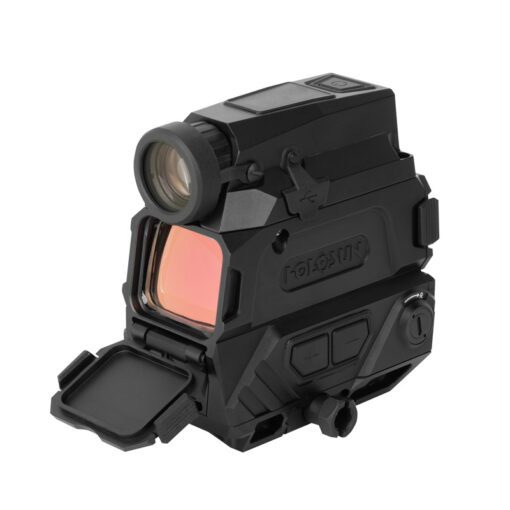

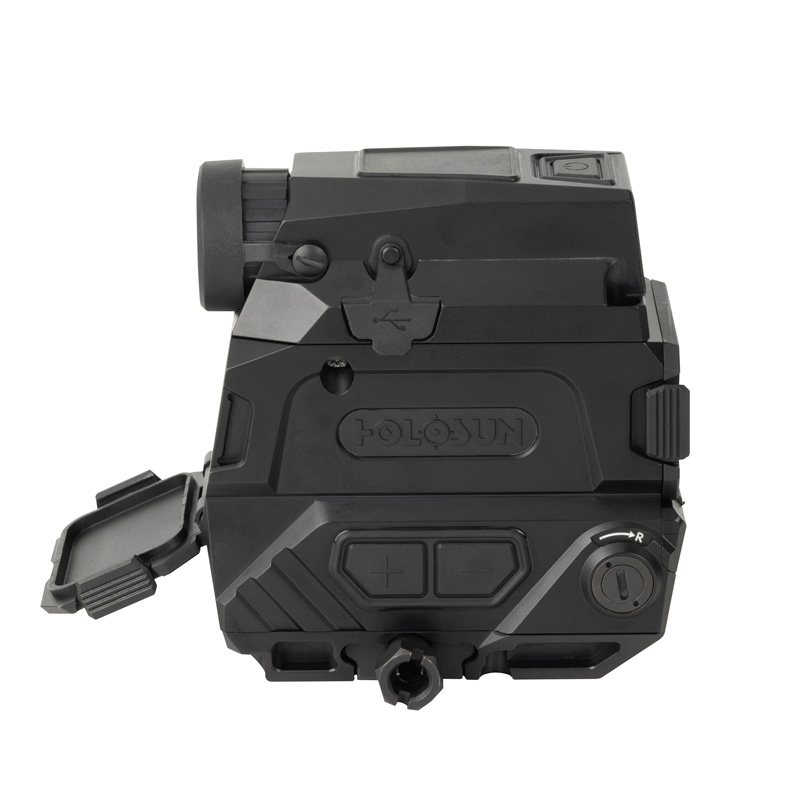

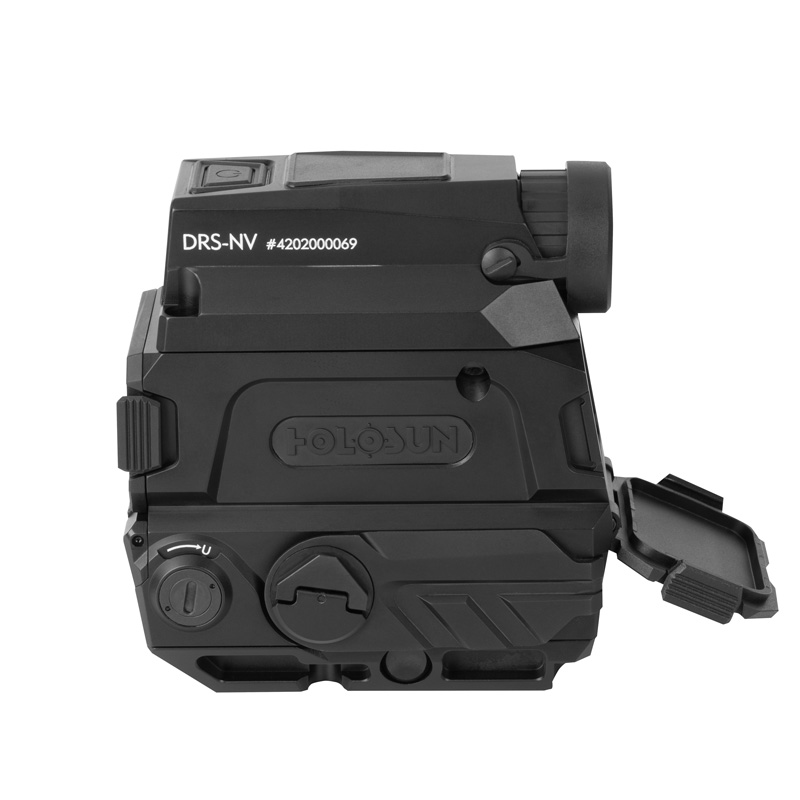

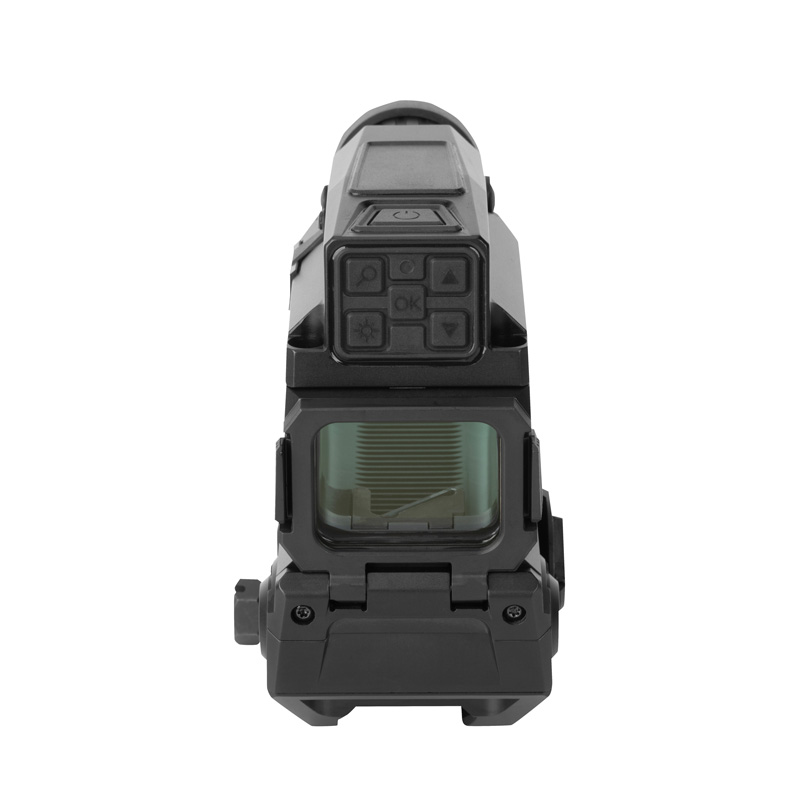

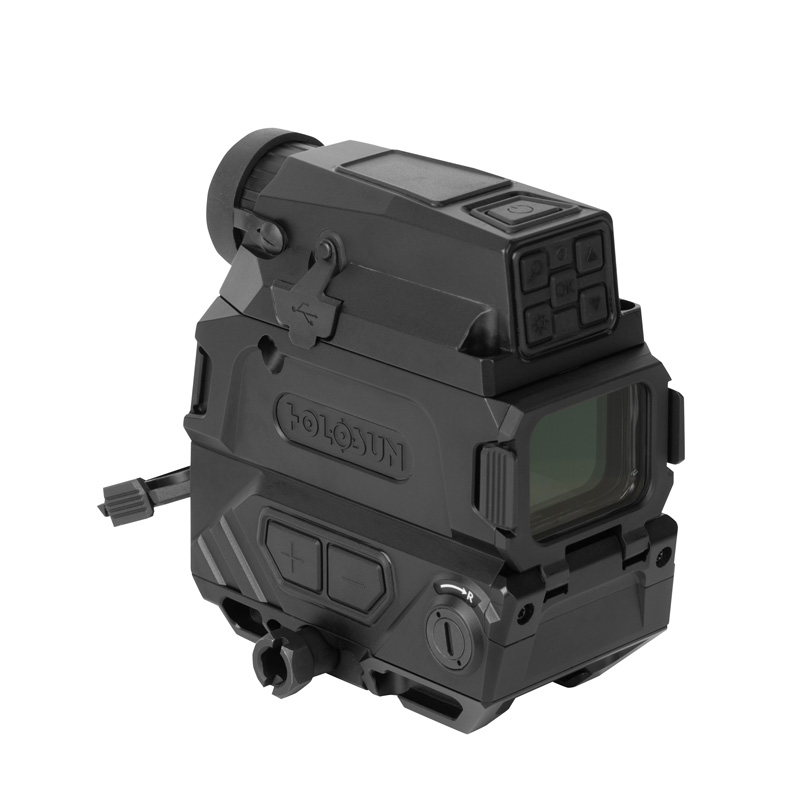

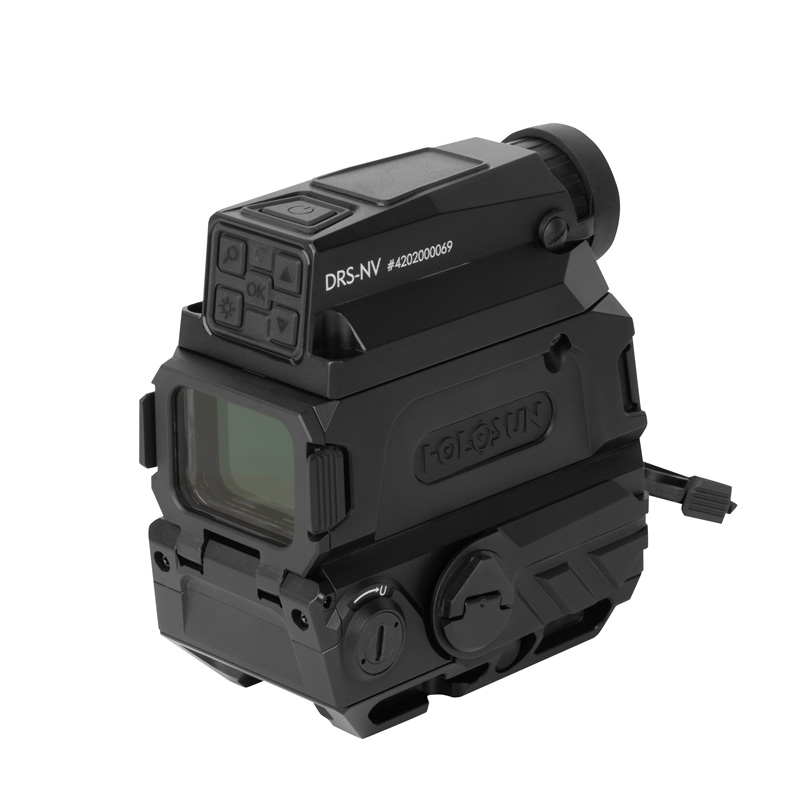

The DRS-NV (Digital Rifle Sight-Night Vision) is a red dot and digital night vision fusion sight that combines Holosun’s red dot sight technology with digital night vision capability.
DRS-NV features an LED MRS (Multi-Reticle System) with three digital reticle options, 1024×768 resolution digital night vision sensor with up to 60fps, 8x digital zoom, digital image and video recording with on-board storage. The DRS is powered by two 18350 rechargeable flat-top batteries with 6 hour run time in full function mode and 8 hours of run time in observation mode. An onboard magnetic coupler connects DRS to USB power for charging the batteries or to a PC for downloading of recorded images and video.
DRS-NV units amplify light to improve low light visibility. Moonlight and starlight provide sufficient lighting in most cases, however, during periods where cloud cover blocks moonlight and starlight, an external infrared (IR) illumination source is needed. Holosun recommends one of our laser devices with IR Illumination such as the LE321, or LS321. Verify your local and/or state laws before attaching and IR illumination device to a firearm with a night vision device.
Notice 5/6/2024: An updated user manual is available on this product page for download. Page 16 has been updated to reflect an Auto-Off function instead of a Shake Awake function for the camera. The LED Red Dot System does feature our Shake Awake functionality while the camera system has an Auto Off function.
Items Dimensions (in inches)
In the Box
- 2x 18350 Li-ion Rechargeable Batteries
- Multi Tool
- Wrench
- Lens Cloth
- USB Cable
– TECH & FEATURES –
-
Shake Awake™
-
Multiple Reticle System
-
Multilayer Reflective Glass
Shake Awake™
– Specification –
- Red Dot Sight w/ Fusion Night Vision Overlay
- 60 Frames Per Second Overlay Refresh Rate
- Digital Cross or T Style Night Vision Reticles
- Internal Video Recording System
- Digital Zoom: 1x, 2x, 4x, 8x
- Multi-Reticle System™ (MRS): 2 MOA Dot, 65 MOA Circle, Circle-Dot
OPTICAL SPECS
Reticle | 2 MOA Dot & 65 MOA Circle |
Light Wavelength | 650nm |
Reticle Color | Red |
Parallax Free | Yes |
Unlimited Eye Relief | Yes |
Magnification | 1x |
Multi-Coatings | Yes |
ELECTRONIC SPECS
Power Source | Battery |
Battery Type | 18350 |
Battery Life (Hours) | 50000 |
Digital Modes | Night Vision Fusion |
Video Recording | Internal |
Screen Refresh Rate | 30FPS/60FPS |
Digital Screen | 1024×768 OLED |
Brightness Setting | 8 DL & 4 NV |
PHYSICAL SPECS
Window Size | 1.25×0.98 |
Dimension (in) | 3.7×2.2×3.5 |
Weight (oz) | 18.5 |
MECHANICAL SPECS
Housing Material | 7075 T6 Aluminum |
Surface Finish | Anodize |
Adjustment per Click | 0.5 MOA |
W&E Travel Range | ±50 MOA |
ENVIRONMENT SPECS
Storage Temperature | -40℃~65℃ |
Working Temperature | -40℃~51℃ |
Submersion | IP67 |
Vibration | 1000G |
MAGNIFICATION SPECS
Digital Zoom | 1x 2x 4x 8x |
Transmittance | NA |
Diopter | NA |
Field of View | 7.2° x 5.3° |
Eye Relief | NA |
Exit Pupil | NA |
Magnification | Digital |
