– Overview –

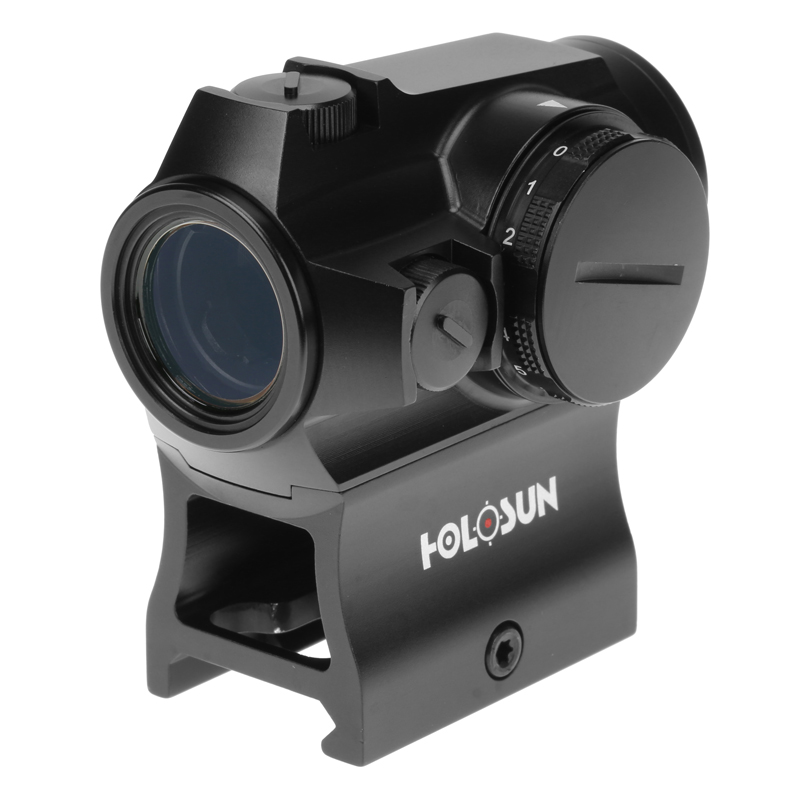

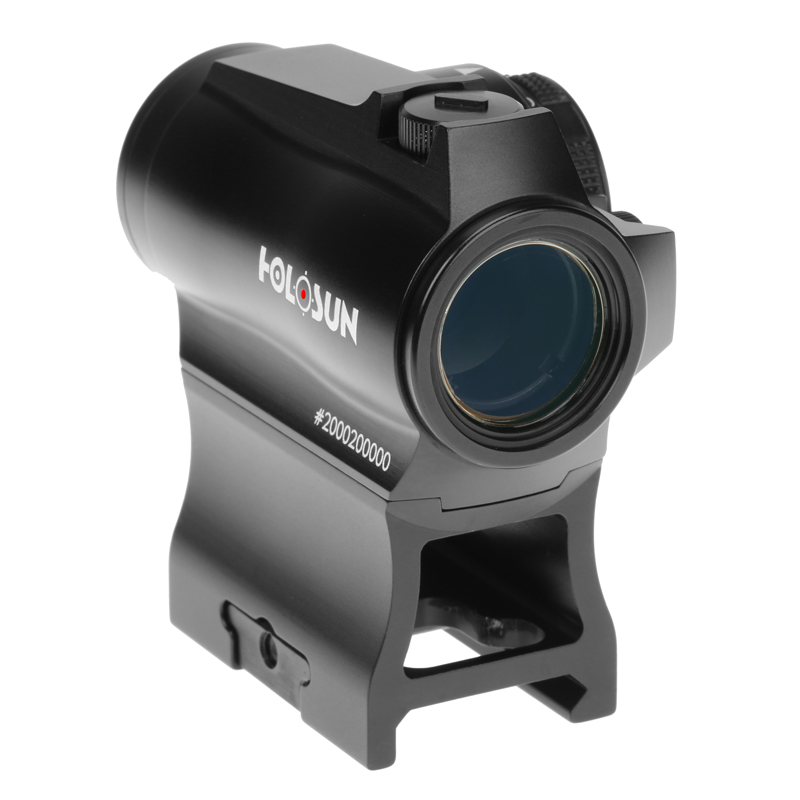

The HS503R is a 20mm micro sight designed for rifle and carbine applications. HS503R features a Rotary switch to select reticle intensity, Holosun’s Red Super LED with 50k hour battery life, and MRS (Multi-Reticle System) with 10 daylight and 2 night vision compatible reticle intensity settings.
The HS503R housing is made from 6061 aluminum and includes both a lower 1/3 co-witness mount (1.63”) and a low mount (.75”) for low-comb height rifle applications. Additional features include rubber lens covers, and a battery compartment integrated into the Rotary switch for the 2032 battery. HS503R is a versatile sight for users of all levels.
Items Dimensions (in inches)
In the Box
- Lower 1/3 Cowitness Mount
- Low Profile Mount
- T10 L Key
- Rubber Cover
- User Manual
- CR2032 Battery
- Lens Cloth
– TECH & FEATURES –
-
Multiple Reticle System
-
Multilayer Reflective Glass
Multiple Reticle System
– Specification –
- MRS:2 MOA Dot; 2 MOA Dot & 65 MOA Circle
- Up to 100,000 Hours Battery Life (Setting 6)
- 12 Brightness Setting: 10 DL & 2 NV Compatible
- Rotary Battery Compartment
- Parallax-free & Unlimited Eye Relief
PHYSICAL SPECS
Window Size | 20mm Diameter |
Dimension (in) | 2.73×1.53×1.61 |
Weight (oz) | 3.74 |
MECHANICAL SPECS
Housing Material | 6061 T6 Aluminum |
Surface Finish | MAO |
Adjustment per Click | 0.5 MOA |
W&E Travel Range | ±50 MOA |
ENVIRONMENT SPECS
Storage Temperature | -40℃~70℃ |
Working Temperature | -30℃~60℃ |
Submersion | IP67 |
Vibration | 1000G |
