– Overview –

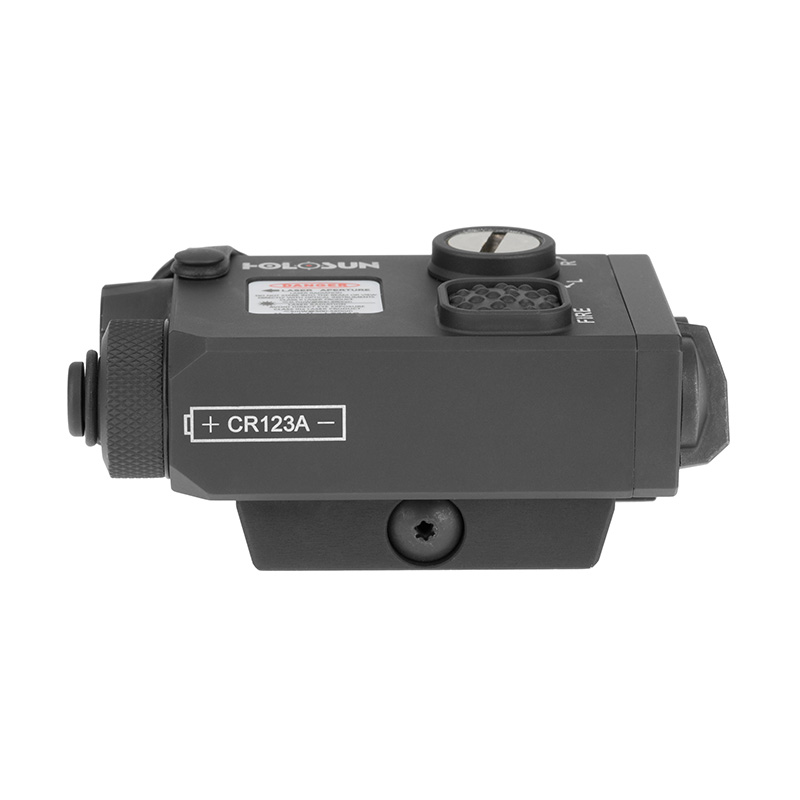

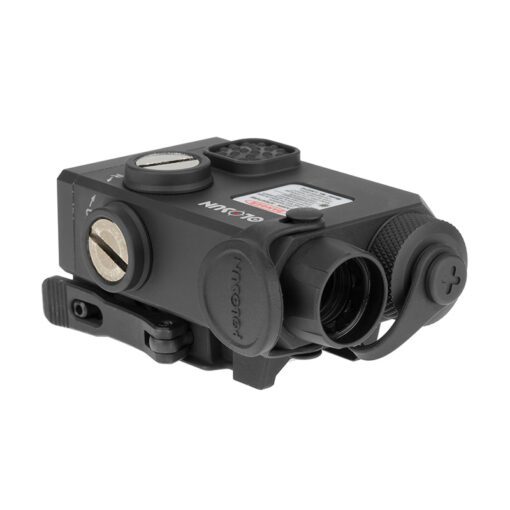

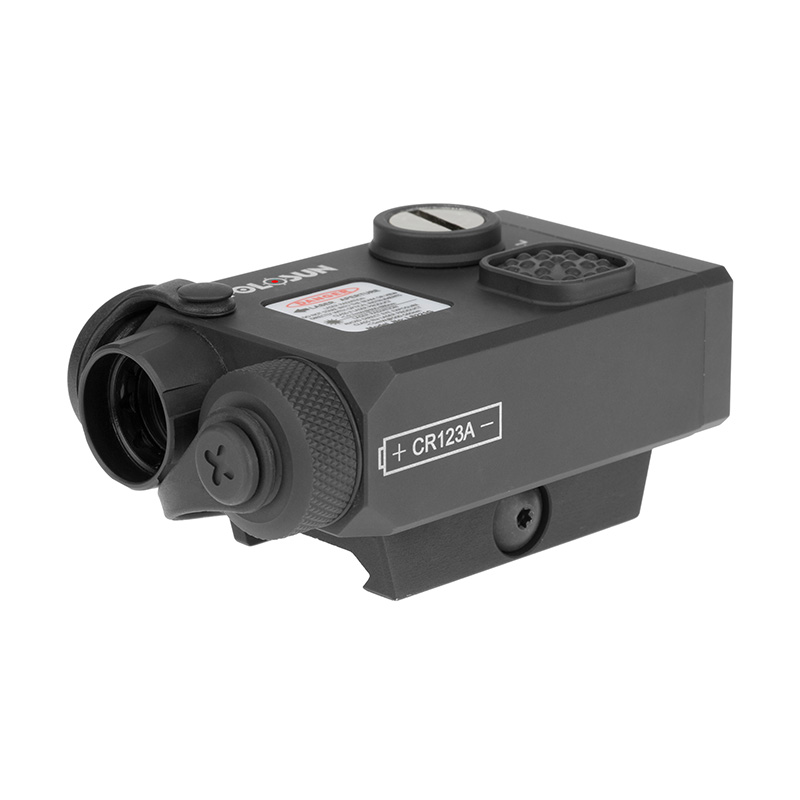

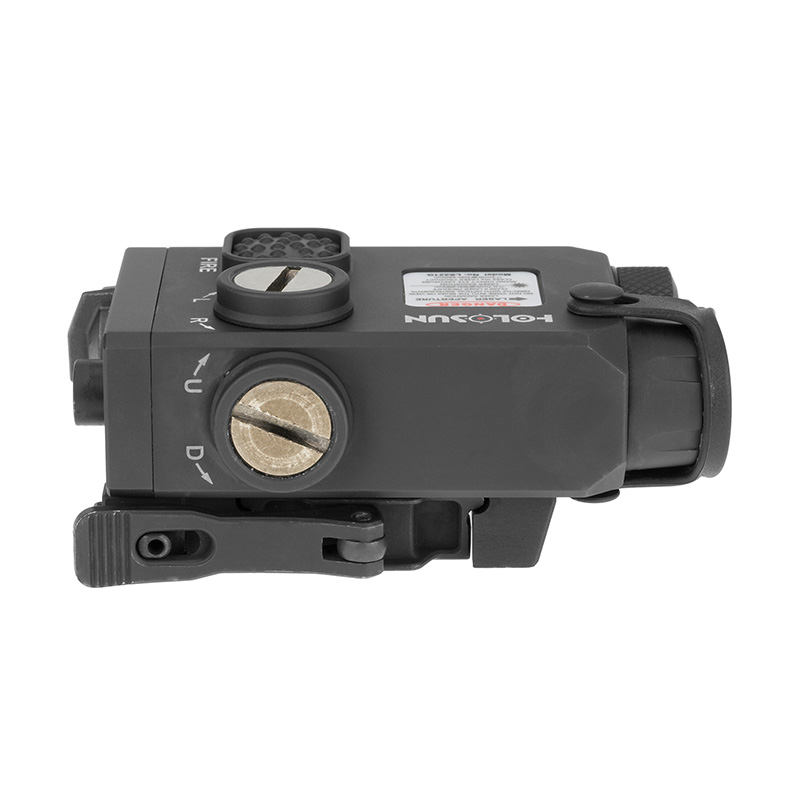

The LS221G is a class IIIa visible green laser aiming device with a coaxial mounted class 2 IR (infrared) laser for use with night vision devices. The LS221G features a 7075-aluminum matte black anodized housing with a quick release Picatinny rail mount. The LS221G is powered by a single CR123 battery which can provide up to 5000 hours of battery life.
The rear facing selector switch lets the user select between visible low, visible high, IR low, IR high activation using the included remote pressure switch or turn the unit OFF. The LS221G also includes tactile windage and elevation adjustments for a precision zero.
Items Dimensions (in inches)
In the Box
- QD Release Mount
- Remote Cable Switch
- T10 L Key
- User Manual
- CR123A Battery
– Specification –
- Coaxial Red and IR Laser Pointer
- High/Low Brightness Setting
- Remote Cable Switch
- Quick Release Mount
- IP67 Waterproof
PHYSICAL SPECS
Window Size | N/A |
Dimension (in) | 3.4×1.9×1.5 |
Weight (oz) | 6.7 |
MECHANICAL SPECS
Housing Material | 7075 T6 Aluminum |
Surface Finish | MAO |
Adjustment per Click | 0.5 MOA |
W&E Travel Range | ±50 MOA |
ENVIRONMENT SPECS
Storage Temperature | -40℃~65℃ |
Working Temperature | -40℃~51℃ |
Submersion | IP67 |
Vibration | 1000G |
ILLUMINATOR SPECS
White LED Candela | N/A |
Laser & Illuminator Type | Dual Laser |
White LED Output | N/A |
IR Illuminator Class | N/A |
IR Illuminator Output | N/A |
IR Pointer Class | IIIB |
IR Pointer Output | 0.1mw(low)/0.7mw(high) |
Visible Laser Class | IIIA |
Visible Laser Output | 1mw(low)/5mw(high) |
