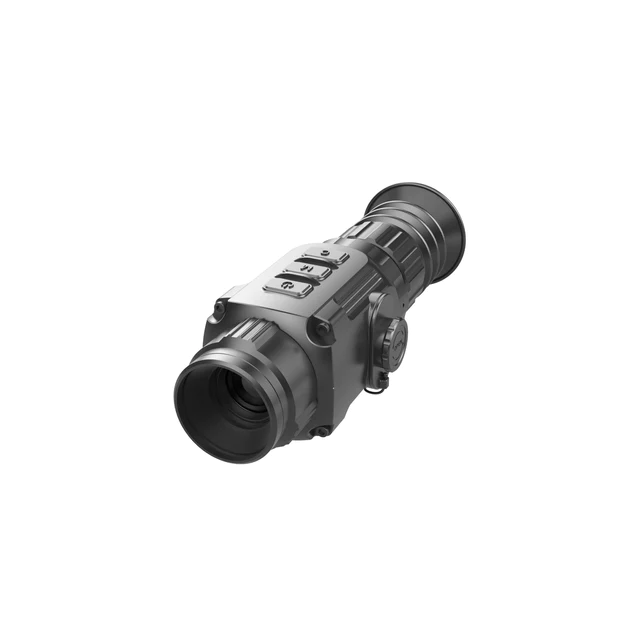

Saim Series Thermal Rifle Scope SCP19
InfiRay SAIM Thermal Rifle Scope SCP19 – 256*192,12μm VOx ,25Hz, 19mm manual lens,1280*960 Display, Eye relief 40mm,IP67
Thermal Imaging Riflescope Saim Series
The Saim series thermal imaging scope is designed with portability and easy for operation. Ergonomic design and excellent imaging quality make the Saim series an excellent companion for night observation, even in condition of rainy or foggy.
Meet the Saim Series
The Saim series thermal imaging scope is designed with portability and easy of operation in mind. Ergonomic design and excellent imaging quality make the Saim series an excellent companion for night observation, even in rainy or foggy weather.
High Image Quality
Built-in InfiRay detector and matched with Matrix ⅢTM powerful algorithm designed to increase imaging clarity and overall image detail. Matrix ⅢTM results in a sharper, more detailed field of view and enhanced object identification capabilities.the Saim series provides high image quality, improving the image contrast automatically, strengthening the image hierarchy, so to find target faster.
User-Friendly Interface
Simple and easy to operate is the initial design intention of the Saim series. Full icon design, easy to understand, and translucent background design of menu can effectively avoid occlusion vision. Internal menu items and options are also displayed on a contrasting gradient substrate so you can keep an eye on settings without losing sight of your objective.
Image Sharpness Adjustment
Image sharpness can be adjusted manually to fit individual preferences for high quality image, and there are four levels for option by short pressing menu key.
Ultraclear Mode
Ultraclear mode is specially for bad weather such as heavy fog and raining, that make Saim be more sensitive and get more details.
Compact Size and Lightweight
With reasonable layout, compact structure and light weight, the Saim series is more comfortable and convenient for outdoor use.
High Shock Resistance
The Saim series features exceptionally high shock resistance up to 1000G.
External Power Supply
The working time can be significantly prolonged by connecting with high capacity external power supply units, i.e. portable power source via Type-C cable presented in the package.
Picture-in-Picture Function
Picture-in-Picture improves accuracy by providing a 2x magnified image of the reticle area at the top of the display. It helps to magnify the target while retaining the rest of the field of view visible.
Long detection range up to 986 meters
The SCP19 has a detection range of up to 986m on a Lifesize target with background.
| Model | SCP19 |
| Resolution | 256×192 |
| Pixel Size, μm | 12 |
| NETD, mk | ≤40 |
| Frame Refresh Rate, Hz | 25 |
| Objective Lens, mm | 19 |
| Field of View | 9.2°×6.9° |
| Magnification, x | 2.3-4.6 |
| Diopter Adjustment | -5D～+5D |
| Display Resolution | 1280×960 LCOS |
| WiFi & Recorder | x |
| Compass & Msensor | Msensor |
| Amount of Built in Memory gb | x |
| Battery Type | CR123x2 |
| Max. Battery Life,(t=25℃),h | 8 |
| Weight, (without battery) g | <380 |
| Dimension, mm | 186x61x61 |
| Detection Range, m | 986 |
| (Target size:1.7m×0.5m,P(n)=99%) |
| Weight | 2 kg |
|---|---|
| Dimensions | 25 × 15 × 15 cm |
Brand
INFIRAY
YOUR PARTNER IN
NIGHT VISION!
OUR FOCUS
InfiRay Africa is dedicated to bringing you the best thermal imaging products in the industry.
Our digital rifle scopes, night vision monocular/binoculars, and automotive thermal imaging provide you with state-of-the-art technology that will enhance your outdoor experiences.
From hunting to nature observation, our gear will give you new insights into the world of heat.
PLEASE NOTE
Timeless Technologies would like to bring the following under your attention of steps that has to be taken with the knowledge that we have available until we have clarification on the matter as discussed below.
In order to legally distribute, sell and market ML Munitions items as classified by the Wassenaar Arrangement (thermal rifle scopes) in the Republic, the DCAC (Directorate Conventional Arms Control) requires sufficient documentation and registration to be in place. Timeless Technologies (Pty) LTD, is registered with the DCAC (Directorate Conventional Arms Control) as a dealer of thermal electro-optical equipment.
DCAC Certificate Number: MS 1 – 22 – 002483
Conventional Arms Marketing Permit Number: AMP 2 – 22 – 0005006
According to the Wassenaar Arrangement, thermal rifle scopes classifies as part Munitions List (ML1 / ML1d5) thus we need to follow the laws set out by the National Conventional Arms Control Act 41 of 2002.
These laws govern the dealing, brokering, marketing and possession of these controlled items set out by the Munitions List.
Therefore, the following certification and permits needs to be adhered to for any business or individual who is in possession of a controlled item on the Munition List (thermal rifle scope):
-
DCAC Registration certificate
-
Possession permit
-
Domestic transfer authorisation
-
Destruction authorisation
DCAC Registration Certificate:
The registration certificate is required to possess any of the controlled items, render other services related to controlled items including transportation and freight forwarding services.
Certificate must be renewed every three years.
Possession Permit:
The possession permit is required to enable a person to possess and use controlled items for lawful purposes without the intention to trade such items and may be issued for possession of the controlled items specified therein for business or private collection.
Domestic transfer authorisation:
In the event that the owner wants to change the ownership of the controlled item, a written authorisation from the committee is required. This will enable the owner that is in possession of the controlled item to transfer the controlled item to the new owner within the Republic.
This authorisation is not required if the controlled items is transferred temporarily for the purpose of evaluation, testing, maintenance, repair or upgrade.
Destruction authorisation:
In the event that the owner wants to dispose of the controlled item, a written destruction consent is required from the committee.
Please note as we are still investigating all the legal requirements and documents required from the DCAC to establish a more set out guideline for what is expected from the DCAC. We are in direct contact with the committee to establish the clear guidelines. Thus, should any of the above laws and regulations change, we will be in contact with you.
Until we have clear answers, Timeless Technologies will assist you in obtaining your certificate and permits required to purchase / own the thermal weapon sight.
For any questions, feel free to contact us!
