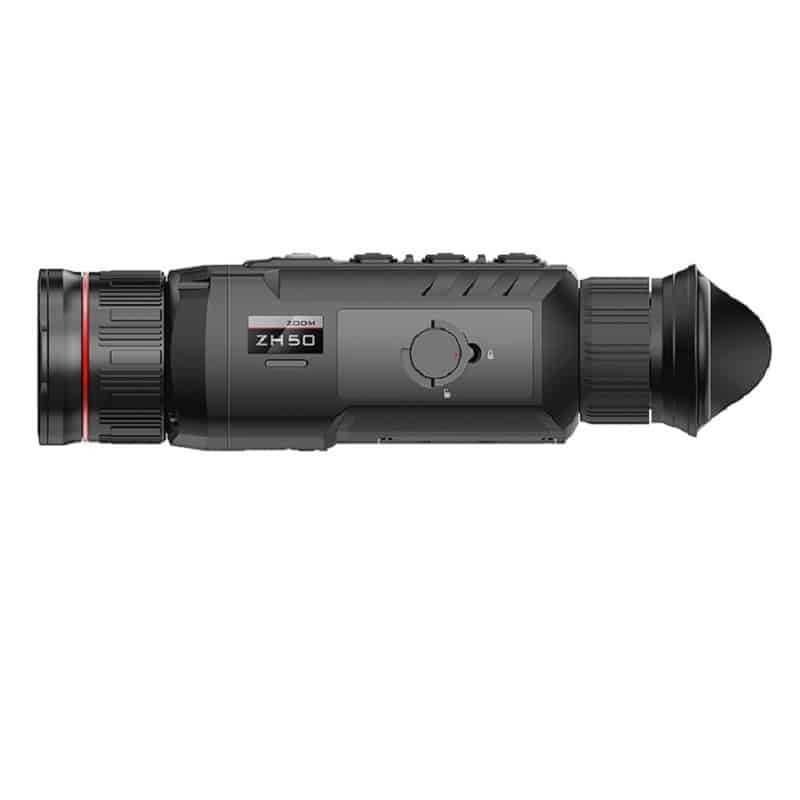

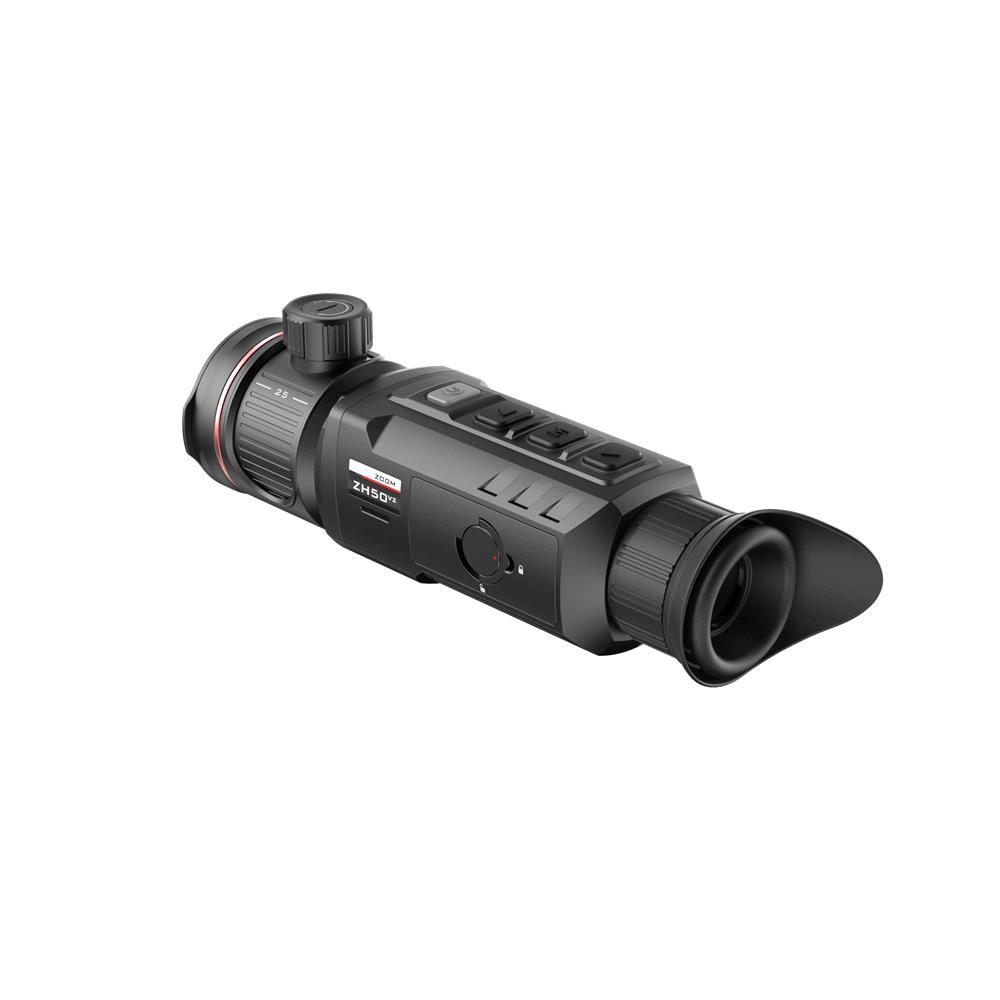

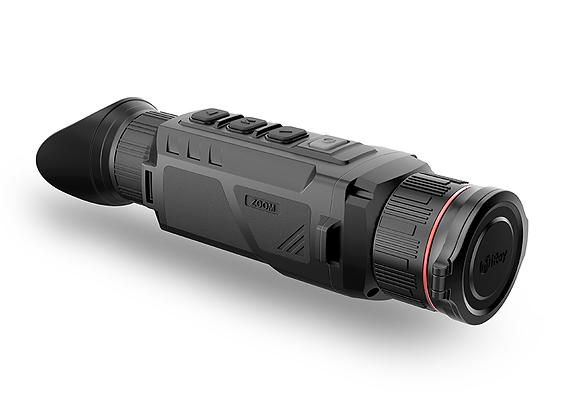

Thermal Imaging Monocular ZOOM ZH50
Zoom ZH50 is a high-end thermal imaging monocular for outdoor. It has greater magnification and keeps three unique technologies of ZOOM series: Dual Field of View, 1440×1080 HD Resolution and Shutterless Calibration Technology.
With the ZOOM’s patented dual-field-of-view design, observers can seamlessly switch between a wide field-of-view (FOV) for detection, and a narrow FOV for target identification. It could be extensively used for night hunting, observation and terrain positioning, search, rescue, and more.
Dual Field of View Design
The wider FOV with a focal length of 25mm can be used for target search while the narrower FOV with a focal length of 50mm can be used for target identification. The detection distance can reach up to 2.6km. With F-number 0.88/1.1, imaging clarity can be lifted to a new level.

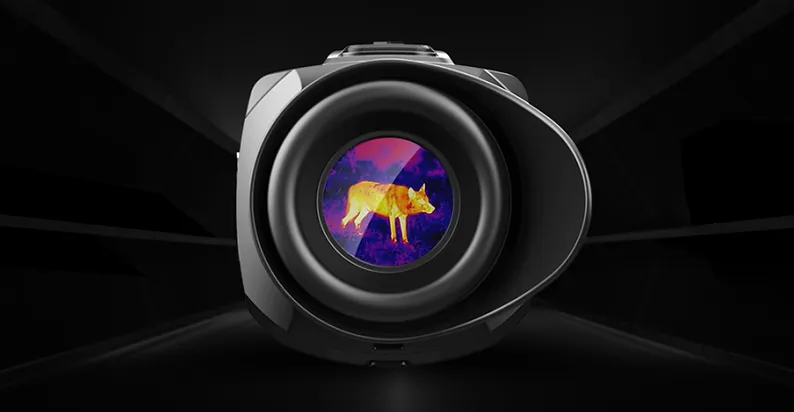

1440 × 1080 FHD OLED Display
Using 1440×1080 FHD OLED display, the observation effect is more excellent. And the 20×magnification eyepiece makes the target search more accurate and the observation distance is longer.
Shutterless Technology
The shutterless core module is adopted to nullify the shutter calibration, simplify the operation.
12µm Thermal Imaging Sensor with NETD ≤25mK
ZH50 is equipped with uncooled VOx 12um 640×512 high resolution sensor featuring NETD ≤25mk (25°C, F#=1.0). With the powerful sensor and image algorithm, better image quality is provided.
Even in heavy fog and rain, the built-in ultra clear mode can also result in clear imaging through a more detailed field of view and enhanced object identification capabilities.
10 Hrs × 2 Batteries
Using low-power components, lower power consumption, with a standard additional battery pack and a replaceable 4400mAh large-capacity lithium battery pack, battery life up to 20 hours.
32GB Storage & WiFi Connection
ZH50 is built with memory of 32GB which can support to store video and pictures.
Built-in WiFi module supports APP connection and media transmission.

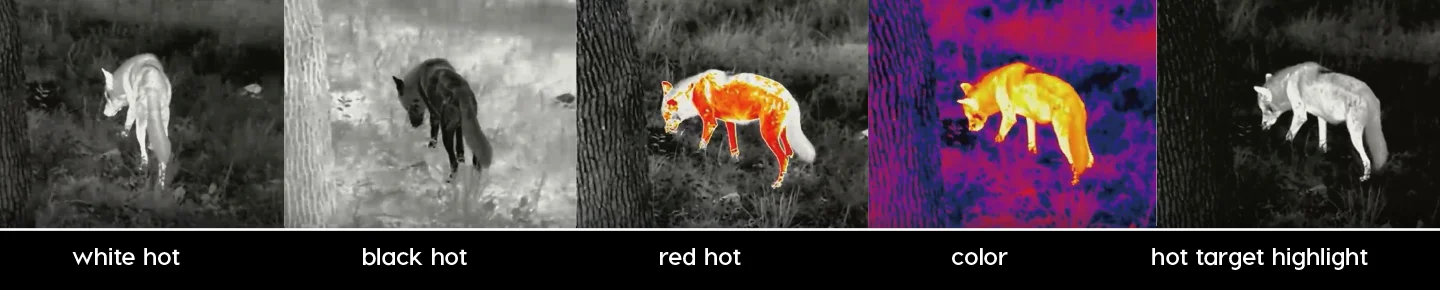

5 Color Palettes
For different hunting environments and personal habits, ZH50 provides more than 5 color palettes, including “white hot” “black hot” “red hot” “color” and “hot target highlight”. Switching between different color palettes is fast and easy.
| Weight | 2 kg |
|---|---|
| Dimensions | 25 × 25 × 15 cm |
Brand
INFIRAY
YOUR PARTNER IN
NIGHT VISION!
OUR FOCUS
InfiRay Africa is dedicated to bringing you the best thermal imaging products in the industry.
Our digital rifle scopes, night vision monocular/binoculars, and automotive thermal imaging provide you with state-of-the-art technology that will enhance your outdoor experiences.
From hunting to nature observation, our gear will give you new insights into the world of heat.
PLEASE NOTE
Timeless Technologies would like to bring the following under your attention of steps that has to be taken with the knowledge that we have available until we have clarification on the matter as discussed below.
In order to legally distribute, sell and market ML Munitions items as classified by the Wassenaar Arrangement (thermal rifle scopes) in the Republic, the DCAC (Directorate Conventional Arms Control) requires sufficient documentation and registration to be in place. Timeless Technologies (Pty) LTD, is registered with the DCAC (Directorate Conventional Arms Control) as a dealer of thermal electro-optical equipment.
DCAC Certificate Number: MS 1 – 22 – 002483
Conventional Arms Marketing Permit Number: AMP 2 – 22 – 0005006
According to the Wassenaar Arrangement, thermal rifle scopes classifies as part Munitions List (ML1 / ML1d5) thus we need to follow the laws set out by the National Conventional Arms Control Act 41 of 2002.
These laws govern the dealing, brokering, marketing and possession of these controlled items set out by the Munitions List.
Therefore, the following certification and permits needs to be adhered to for any business or individual who is in possession of a controlled item on the Munition List (thermal rifle scope):
-
DCAC Registration certificate
-
Possession permit
-
Domestic transfer authorisation
-
Destruction authorisation
DCAC Registration Certificate:
The registration certificate is required to possess any of the controlled items, render other services related to controlled items including transportation and freight forwarding services.
Certificate must be renewed every three years.
Possession Permit:
The possession permit is required to enable a person to possess and use controlled items for lawful purposes without the intention to trade such items and may be issued for possession of the controlled items specified therein for business or private collection.
Domestic transfer authorisation:
In the event that the owner wants to change the ownership of the controlled item, a written authorisation from the committee is required. This will enable the owner that is in possession of the controlled item to transfer the controlled item to the new owner within the Republic.
This authorisation is not required if the controlled items is transferred temporarily for the purpose of evaluation, testing, maintenance, repair or upgrade.
Destruction authorisation:
In the event that the owner wants to dispose of the controlled item, a written destruction consent is required from the committee.
Please note as we are still investigating all the legal requirements and documents required from the DCAC to establish a more set out guideline for what is expected from the DCAC. We are in direct contact with the committee to establish the clear guidelines. Thus, should any of the above laws and regulations change, we will be in contact with you.
Until we have clear answers, Timeless Technologies will assist you in obtaining your certificate and permits required to purchase / own the thermal weapon sight.
For any questions, feel free to contact us!
