INTEGRIX IX6 3-18*44 34MM FFP MID POWER SPORTING SCOPE A2 MOA
THE CULMINATION OF INTEGRATED & INTELLIGENT OPTICAL DESIGN & MANUFACTURING.
INTEGRIX® is pinnacle performance. Years of experience were brought to the forefront through expert development and evaluation, countless testing, and meticulous manufacturing. German and Japanese glass lenses used exclusively in every INTEGRIX® optic are individually centration tested, multi-coated for glare, reflection, and scratch resistance, and upon assembly are inspected for concentricity as a whole.
THE END RESULT? Optimized image quality with over 92% light transmission, edge-to-edge sharpness, minute distortion, and high contrast resolution.
- Individually Centration Tested German and Japanese Glass Lenses, Concentric Tested Post Assembly
- Multi-coated Lenses for Glare, Reflection, and Scratch Resistance
- Low Aberration Optimized Image Quality with Over a 92% Light Transmission
- Edge to Edge Sharpness, High Contrast, and High-Resolution Standard
- Reliable Adverse Temperature and Environmental Performance with -40°F (-40°C) to 160°F (71°C) Operational Range and IPX7 Waterproof Rating
- Rated, at Minimum, for .338 LAPUA Magnum
- Red and Green Reticle Illumination with 8 Brightness Intensity Settings
- 12 Hour Automatic Shutoff
- Side Adjustable Parallax Turret Smoothly and Accurately Adjusts from 30 Yards / 27.4 m to Infinity
- Intuitive Lockable and Zero Resettable Windage and Elevation Turrets, Serrated and Oversized for Glove Use
- Elevation Turret Equipped with Zero Stop
- Serrated Power Ring and Rear Adjustable Eyepiece Diopter
- Make Transitioning Across Magnification Range Effortless with Included Oversized Throw Lever

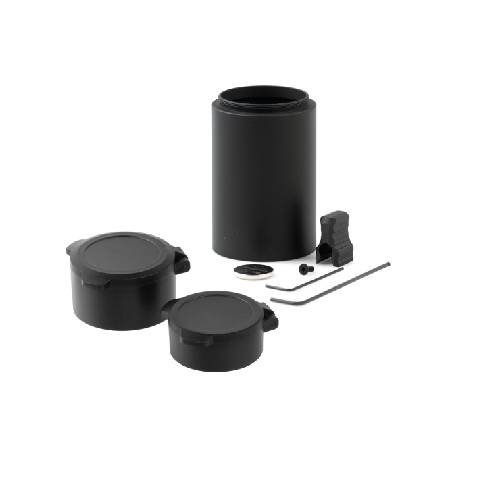

ACCESSORIES INCLUDED
- Throw Lever

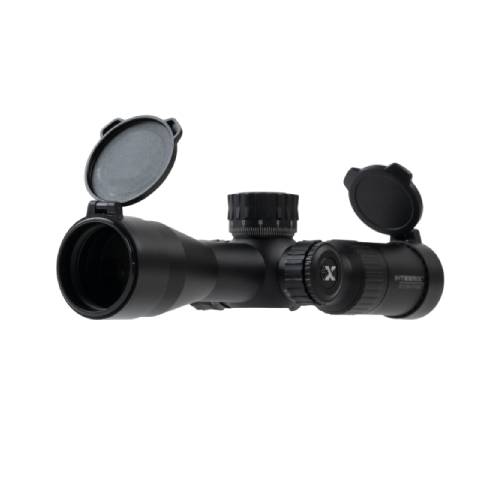

- Flip-open Lens Caps
- Hex Wrench 2 mm
- Hex Wrench 1.5 mm
- CR2032 Battery
- Cleaning Cloth
MATERIALS | 6061-T6 Aluminum |
---|---|
SURFACE FINISH | Anodized |
FOCAL PLANE | FFP (First Focal Plane) |
RETICLE | A2 MOA |
RETICLE TYPE | Etched Glass |
RETICLE ILLUMINATION | Yes |
RETICLE COLOR(S) | Red and Green |
ILLUMINATION TOGGLE TYPE | Button |
BRIGHTNESS SETTINGS | 8 |
BRIGHTNESS MODE(S) | Manual |
AUTO SHUTOFF (HRS) | 12 |
TEMPERATURE OPERATING RANGE | -40⁰C to +71⁰C / -40⁰F to +160⁰F |
WATERPROOF RATING | IPX7 |
BALLISTIC DROP COMPENSATION | No |
RANGE ESTIMATION | No |
BATTERY LOADING | Left Side Turret |
BATTERY TYPE | CR2032 3V |
CLICK VALUE | 1/4 MOA |
WINDAGE TRAVEL | Right 12 MOA / Left 12 MOA |
TOTAL WINDAGE | 24 MOA |
ELEVATION TRAVEL | Up 60 MOA / Down 30 MOA |
TOTAL ELEVATION | 90 MOA |
TRAVEL PER REVOLUTION | 24 MOA |
MAGNIFICATION MAX. | 18 |
MAGNIFICATION MIN. | 3 |
ANGULAR FOV | Low Power: 7.2° / High Power: 1.2° |
LINEAR FOV @ 100 YDS | Low Power: 37.7′ / High Power: 6.3′ |
LINEAR FOV @ 100 M | Low Power: 12.6 m / High Power: 2.1 m |
LIGHT TRANSMISSION | 92% |
EYE RELIEF | 100 mm / 3.94 in |
PARALLAX CONTROL | Left Side Adjustable Turret |
PARALLAX | 27.4 m / 30 yds – Infinity |
EXIT PUPIL | Low Power: 2.5 mm / High Power: 11 mm |
OBJECTIVE LENS DIAMETER | 44 mm |
DIOPTER ADJUSTMENT | -3D ~ +2D |
DIOPTER TYPE | Friction Secured |
CALIBER RATING | .338 Lapua Magnum |
WEIGHT (OZ) | 841 g / 29.7 oz |
LEAPERS® LIFETIME WARRANTY
Leapers, Inc. warrants that all products conform to published specifications and are free from defects in material and workmanship. Leapers, Inc. will repair or replace, at our discretion, a defective product for the duration of the product’s lifespan. In the event of a product being discontinued, credit for the product’s MSRP may be offered.
