MDT ESS CHASSIS SYSTEM

R 28,087.00 Incl. VAT

This Product may be on back order.

SPECIAL ORDER ONLY BLUE / BRONZE / GRAY / ODGREEN / RED / WHITE ETA 2-4MONTHS

Always call to confirm ETA on Delivery,

+264816417000

Pick your version.
Product total
Options total
Grand total
SKU: MDT Chassis - ESS System Category:

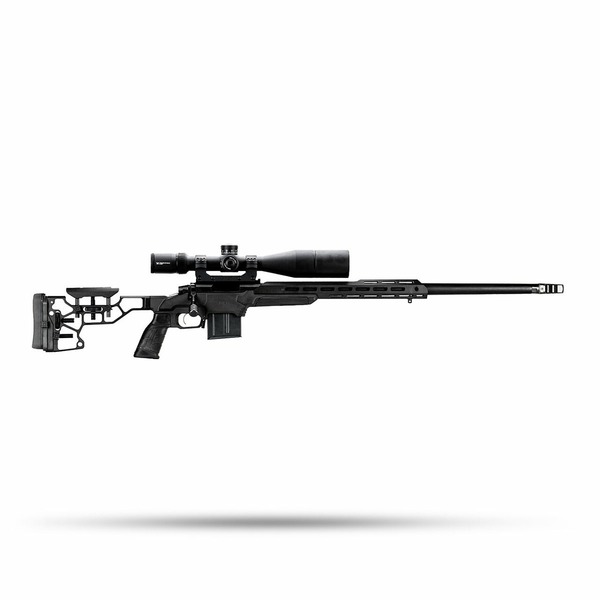

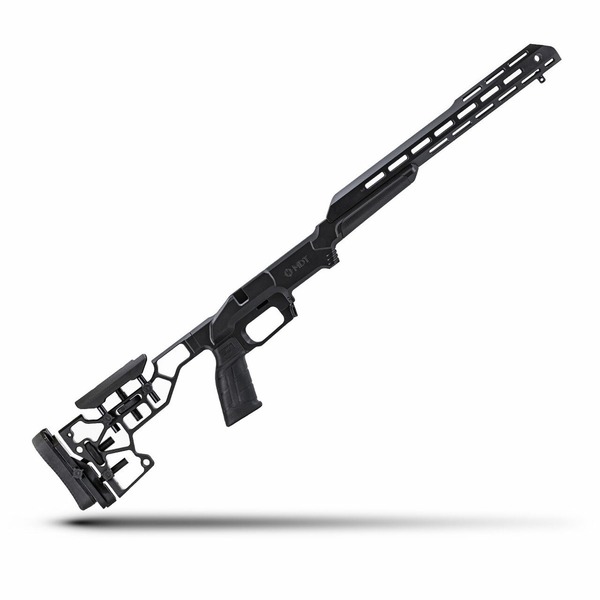

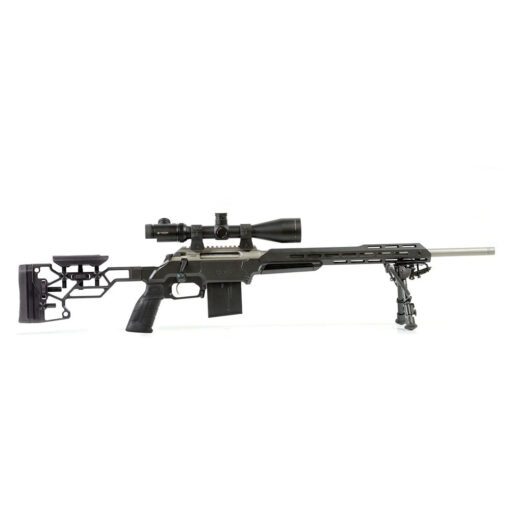

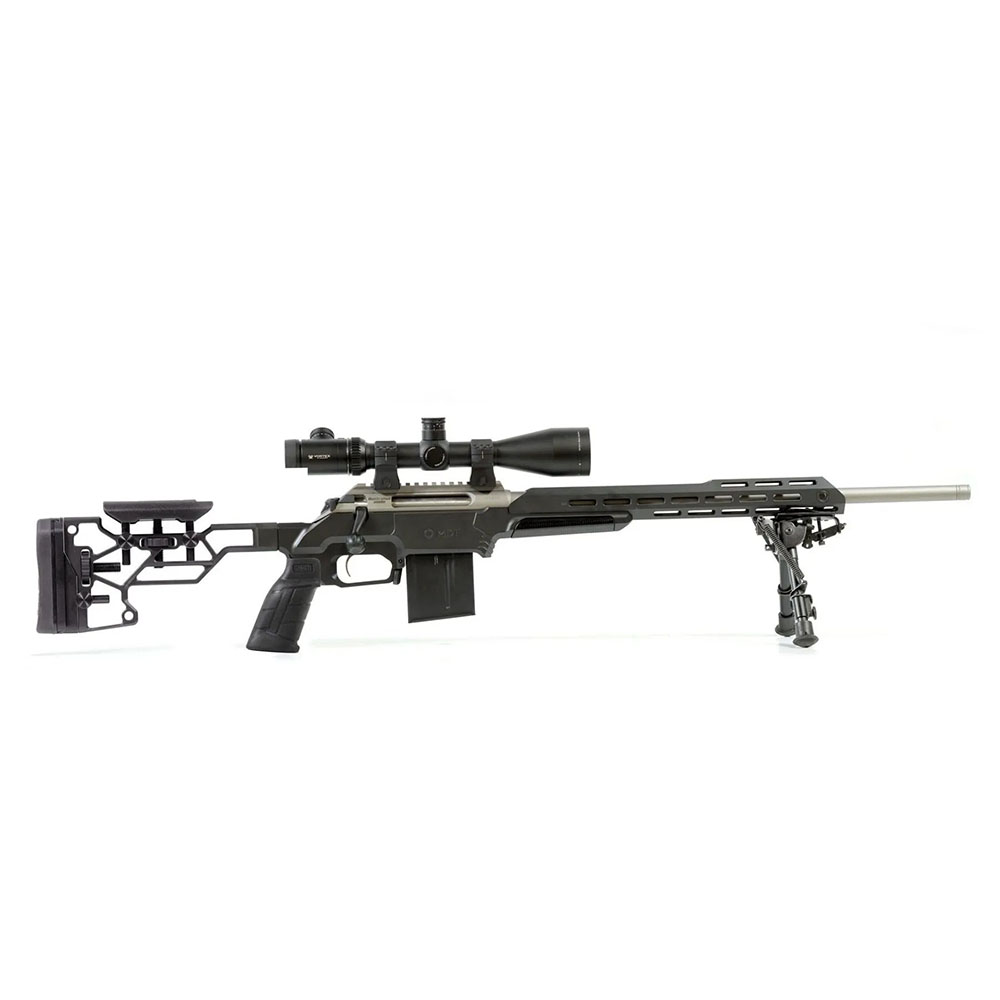

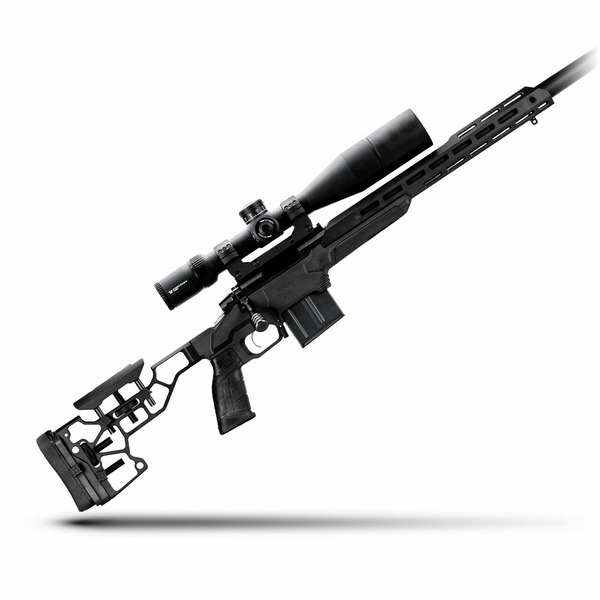

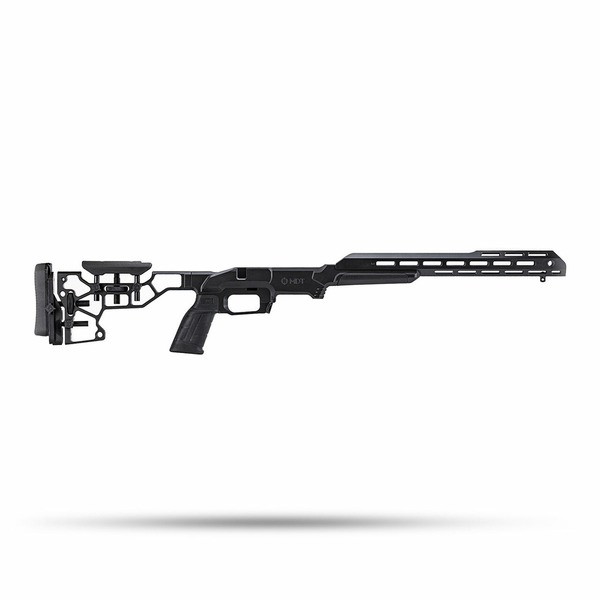

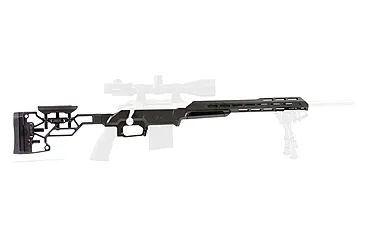

MDT ESS Chassis System

NB: Kit- Includes Main Base, 15″ No Rail Forend and Fixed Buttstock

The ESS retains our proven V-block bedding system to form a solid and reliable base for the rifle action. The magazine well has been refined for easy insertion of the magazine, while reducing rattle and movement. The tab style magazine release has been replaced with a semi-flush ambidextrous paddle that can easily be activated by a weak or strong hand. The recoil lug mortise has been designed to accommodate most aftermarket recoil lugs, and the trigger area will accommodate most aftermarket triggers.

A serrated barricade stop has been added to the front of the magazine well, and a polymer forend grip at the balance point adds comfort. The wide fore-grip area combined with the octagonal profiled forend tube offers flexible options when shooting over bags or improvised rests.

Thumb shelves have been added to both sides of the chassis for shooters who prefer an open grip.

The most significant change is the incorporation of the ESS chassis specific buttstock interface, rather than the traditional AR pattern interface. This allows us to place the pistol grip in optimum relation to the trigger, while still allowing the shooter to choose from the wide variety of AR pattern pistol grips which suit their preference.

The MDT ESS chassis comes with its own butt-stock, similar to our Skeleton Rifle Stock. It is fully adjustable including lateral adjustment for the butt-pad and the cheek rest. Cheek rest height and butt-pad length-of-pull are adjustable by thumb wheels.

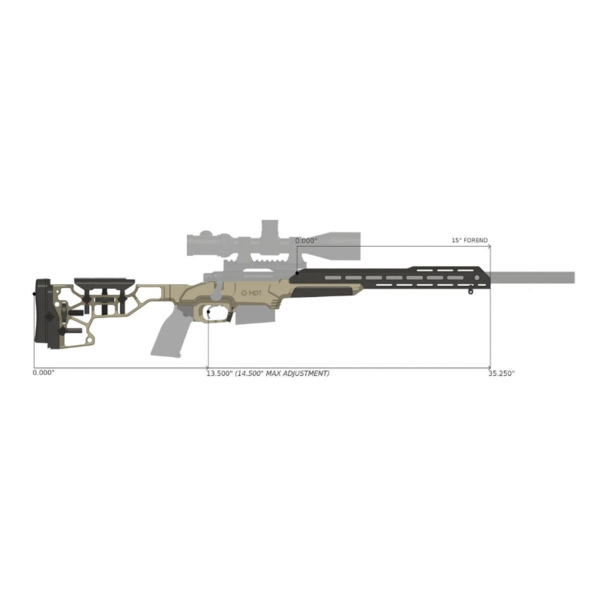

SPECIFICATIONS

  • – Weight: Chassis system including forend and buttstock is between 4.4 to 4.8lbs (depending on action)
  • – Length of Pull: 13.4″ – 14.4″ (Based on Remington 700)
  • – Ambidextrous, easy reach magazine latch – can be operated with trigger finger or left hand
  • – The extra large magazine well for easy mag insertion/removal
  • – Barricade stop in front of the magazine to prevent putting pressure on the magazine
  • – Angled front profile with hand grip for minute vertical adjustments and comfort/protection from the elements
  • – Thumb rests on both sides of the chassis
  • – Wide front profile for extra comfort/stability when resting on flat surfaces
  • – Stock height at comb and heel – 0.5” below bore centerline. 1.0” of riser adjustability
  • – Allows for barrel contours up to 1.300” straight taper. (Note that at larger barrel diameters there is less space in the forend to accommodate     internal attachments such as QD cups, M-lok, and sling swivels)
  • – Accepts AICS pattern magazines for both short and long action. (3.715” long action)
  • – Accepts aftermarket lugs up to 0.375 thick and tapered
  • – Compatible with all non-beavertail AR pattern pistol grips. Beavertail grips will fit with minor trimming
  • – CNC machined from Aircraft grade Aluminum and finished with H-series Cerakote. Cheek-piece, fore-grip, and butt-pad constructed of   composites

COMPATIBILITY

  • – Remington 700 Short Action
  • – Remington 700 Long Action
  • – Savage Short Action, Models 10,11,12 and 16
  • – Savage Long Action, Models 110, 111, 112 and 116
  • – Savage Long Action CIP .338 Lapua Magnum – Requires MDT 3.85″ Magazines
  • – Savage Axis – Short Calibers
  • – Tikka T3 Short Calibers
  • – Tikka T3 Long Calibers – Requires MDT 3.56 Magazine
  • – Howa 1500 / Weatherby Vanguard – Short Caliber – Only works with MDT Polymer Magazines – No V-block due to the flat bottom action
  • – Howa 1500 / Weatherby Vanguard – Long Calibers – No V-block due to the flat bottom action
  • – Browning X-bolt Short Calibers – Only works for 308 Winchester, 6.5 Creedmoor, 243 Winchester
  • – Stiller Tac .338
  • – Ruger American Short Action
  • – Winchester XPR Short Action
  • – Lithgow 102 SA
  • – Bergara B-14
  • – Full size bolt, Remington 700 Clones may be supported, contact Customer Support for more information about your action

WHAT YOU GET, AND WHAT YOU’LL NEED

The ESS Chassis System comes complete with a chassis, buttstock, and a forend. All hardware is included. You will need Allen keys to assemble and install on your rifle.

In addition to the ESS Chassis System, you will need:

  • – An AR-15 pattern pistol grip, grips with a beavertail will require minor fitting
  • – An AICS pattern magazine appropriate for the rifle chambering

Weight 5 kg
Dimensions 50 × 20 × 15 cm

Brand

MDT

MDT PRODUCTS ARE USED WORLD-WIDE BY HUNTERS, COMPETITION SHOOTERS, LAW ENFORCEMENT AND MILITARY PERSONNEL.

A PASSION FOR PRECISION, INNOVATION, AND A CONSTANT DRIVE TO HELP OUR CUSTOMERS.

MDT About Us Image
MDT was born out of a single purpose: to provide better value and better accuracy for precision rifles. The first MDT chassis was developed from the ground up based on the needs of shooters. Our engineers verified every function and feature based on the input from competitive shooters. The end results was a game-changing product called the TAC21 that continues to perform at the range, in the field and in competitions around the world. Today, MDT chassis, magazines and accessories are still developed the same way. We collaborate, question and verify our concepts with precision shooters from around the globe to ensure that every MDT product is designed with the same single purpose: to provide our customers with the absolute best product possible.

Options Available

Options Available

HOWA 1500 – SA

104610-BBZ MDT Chassis – ESS System – HOWA 1500 – SA – RH – BBZ
104610-BLK MDT Chassis – ESS System – HOWA 1500 – SA – RH – BLK
104610-BLU MDT Chassis – ESS System – HOWA 1500 – SA – RH – BLU
104610-FDE MDT Chassis – ESS System – HOWA 1500 – SA – RH – FDE
104610-GRY MDT Chassis – ESS System – HOWA 1500 – SA – RH – GRY
104610-ODG MDT Chassis – ESS System – HOWA 1500 – SA – RH – ODG
104610-RED MDT Chassis – ESS System – HOWA 1500 – SA – RH – RED
104610-WHT MDT Chassis – ESS System – HOWA 1500 – SA – RH – WHT

HOWA 1500 – LA

104611-BBZ MDT Chassis – ESS System – HOWA 1500 – LA – RH – BBZ
104611-BLK MDT Chassis – ESS System – HOWA 1500 – LA – RH – BLK
104611-BLU MDT Chassis – ESS System – HOWA 1500 – LA – RH – BLU
104611-FDE MDT Chassis – ESS System – HOWA 1500 – LA – RH – FDE
104611-GRY MDT Chassis – ESS System – HOWA 1500 – LA – RH – GRY
104611-ODG MDT Chassis – ESS System – HOWA 1500 – LA – RH – ODG
104611-RED MDT Chassis – ESS System – HOWA 1500 – LA – RH – RED
104611-WHT MDT Chassis – ESS System – HOWA 1500 – LA – RH – WHT



Lithgow 102 – SA

104612-BBZ MDT Chassis – ESS System – Lithgow 102 – SA – RH – BBZ
104612-BLK MDT Chassis – ESS System – Lithgow 102 – SA – RH – BLK
104612-BLU MDT Chassis – ESS System – Lithgow 102 – SA – RH – BLU
104612-FDE MDT Chassis – ESS System – Lithgow 102 – SA – RH – FDE
104612-GRY MDT Chassis – ESS System – Lithgow 102 – SA – RH – GRY
104612-ODG MDT Chassis – ESS System – Lithgow 102 – SA – RH – ODG
104612-RED MDT Chassis – ESS System – Lithgow 102 – SA – RH – RED
104612-WHT MDT Chassis – ESS System – Lithgow 102 – SA – RH – WHT



Remington 700 – SA

104613-BBZ MDT Chassis – ESS System – Remington 700 – SA – RH – BBZ
104613-BLK MDT Chassis – ESS System – Remington 700 – SA – RH – BLK
104613-BLU MDT Chassis – ESS System – Remington 700 – SA – RH – BLU
104613-FDE MDT Chassis – ESS System – Remington 700 – SA – RH – FDE
104613-GRY MDT Chassis – ESS System – Remington 700 – SA – RH – GRY
104613-ODG MDT Chassis – ESS System – Remington 700 – SA – RH – ODG
104613-RED MDT Chassis – ESS System – Remington 700 – SA – RH – RED
104613-WHT MDT Chassis – ESS System – Remington 700 – SA – RH – WHT

Remington 700 – LA

104614-BBZ MDT Chassis – ESS System – Remington 700 – LA – RH – BBZ
104614-BLK MDT Chassis – ESS System – Remington 700 – LA – RH – BLK
104614-BLU MDT Chassis – ESS System – Remington 700 – LA – RH – BLU
104614-FDE MDT Chassis – ESS System – Remington 700 – LA – RH – FDE
104614-GRY MDT Chassis – ESS System – Remington 700 – LA – RH – GRY
104614-ODG MDT Chassis – ESS System – Remington 700 – LA – RH – ODG
104614-RED MDT Chassis – ESS System – Remington 700 – LA – RH – RED
104614-WHT MDT Chassis – ESS System – Remington 700 – LA – RH – WHT

Ruger American – SA

104615-BBZ MDT Chassis – ESS System – Ruger American – SA – RH – BBZ
104615-BLK MDT Chassis – ESS System – Ruger American – SA – RH – BLK
104615-BLU MDT Chassis – ESS System – Ruger American – SA – RH – BLU
104615-FDE MDT Chassis – ESS System – Ruger American – SA – RH – FDE
104615-GRY MDT Chassis – ESS System – Ruger American – SA – RH – GRY
104615-ODG MDT Chassis – ESS System – Ruger American – SA – RH – ODG
104615-RED MDT Chassis – ESS System – Ruger American – SA – RH – RED
104615-WHT MDT Chassis – ESS System – Ruger American – SA – RH – WHT



Savage Axis – SA

104616-BBZ MDT Chassis – ESS System – Savage Axis – SA – RH – BBZ
104616-BLK MDT Chassis – ESS System – Savage Axis – SA – RH – BLK
104616-BLU MDT Chassis – ESS System – Savage Axis – SA – RH – BLU
104616-FDE MDT Chassis – ESS System – Savage Axis – SA – RH – FDE
104616-GRY MDT Chassis – ESS System – Savage Axis – SA – RH – GRY
104616-ODG MDT Chassis – ESS System – Savage Axis – SA – RH – ODG
104616-RED MDT Chassis – ESS System – Savage Axis – SA – RH – RED
104616-WHT MDT Chassis – ESS System – Savage Axis – SA – RH – WHT

Savage Axis – LA

104617-BBZ MDT Chassis – ESS System – Savage Axis – LA – RH – BBZ
104617-BLK MDT Chassis – ESS System – Savage Axis – LA – RH – BLK
104617-BLU MDT Chassis – ESS System – Savage Axis – LA – RH – BLU
104617-FDE MDT Chassis – ESS System – Savage Axis – LA – RH – FDE
104617-GRY MDT Chassis – ESS System – Savage Axis – LA – RH – GRY
104617-ODG MDT Chassis – ESS System – Savage Axis – LA – RH – ODG
104617-RED MDT Chassis – ESS System – Savage Axis – LA – RH – RED
104617-WHT MDT Chassis – ESS System – Savage Axis – LA – RH – WHT

Savage – SA

104618-BBZ MDT Chassis – ESS System – Savage – SA – RH – BBZ
104618-BLK MDT Chassis – ESS System – Savage – SA – RH – BLK
104618-BLU MDT Chassis – ESS System – Savage – SA – RH – BLU
104618-FDE MDT Chassis – ESS System – Savage – SA – RH – FDE
104618-GRY MDT Chassis – ESS System – Savage – SA – RH – GRY
104618-ODG MDT Chassis – ESS System – Savage – SA – RH – ODG
104618-RED MDT Chassis – ESS System – Savage – SA – RH – RED
104618-WHT MDT Chassis – ESS System – Savage – SA – RH – WHT



Savage – LA

104619-BBZ MDT Chassis – ESS System – Savage – LA – RH – BBZ
104619-BLK MDT Chassis – ESS System – Savage – LA – RH – BLK
104619-BLU MDT Chassis – ESS System – Savage – LA – RH – BLU
104619-FDE MDT Chassis – ESS System – Savage – LA – RH – FDE
104619-GRY MDT Chassis – ESS System – Savage – LA – RH – GRY
104619-ODG MDT Chassis – ESS System – Savage – LA – RH – ODG
104619-RED MDT Chassis – ESS System – Savage – LA – RH – RED
104619-WHT MDT Chassis – ESS System – Savage – LA – RH – WHT



Savage – LA 3.850

104620-BBZ MDT Chassis – ESS System – Savage – LA 3.850 – RH – BBZ
104620-BLK MDT Chassis – ESS System – Savage – LA 3.850 – RH – BLK
104620-BLU MDT Chassis – ESS System – Savage – LA 3.850 – RH – BLU
104620-FDE MDT Chassis – ESS System – Savage – LA 3.850 – RH – FDE
104620-GRY MDT Chassis – ESS System – Savage – LA 3.850 – RH – GRY
104620-ODG MDT Chassis – ESS System – Savage – LA 3.850 – RH – ODG
104620-RED MDT Chassis – ESS System – Savage – LA 3.850 – RH – RED
104620-WHT MDT Chassis – ESS System – Savage – LA 3.850 – RH – WHT



Stiller TAC 338 – LA

104621-BBZ MDT Chassis – ESS System – Stiller TAC 338 – LA – RH – BBZ
104621-BLK MDT Chassis – ESS System – Stiller TAC 338 – LA – RH – BLK
104621-BLU MDT Chassis – ESS System – Stiller TAC 338 – LA – RH – BLU
104621-FDE MDT Chassis – ESS System – Stiller TAC 338 – LA – RH – FDE
104621-GRY MDT Chassis – ESS System – Stiller TAC 338 – LA – RH – GRY
104621-ODG MDT Chassis – ESS System – Stiller TAC 338 – LA – RH – ODG
104621-RED MDT Chassis – ESS System – Stiller TAC 338 – LA – RH – RED
104621-WHT MDT Chassis – ESS System – Stiller TAC 338 – LA – RH – WHT

Tikka T3 – SA

104622-BBZ MDT Chassis – ESS System – Tikka T3 – SA – RH – BBZ
104622-BLK MDT Chassis – ESS System – Tikka T3 – SA – RH – BLK
104622-BLU MDT Chassis – ESS System – Tikka T3 – SA – RH – BLU
104622-FDE MDT Chassis – ESS System – Tikka T3 – SA – RH – FDE
104622-GRY MDT Chassis – ESS System – Tikka T3 – SA – RH – GRY
104622-ODG MDT Chassis – ESS System – Tikka T3 – SA – RH – ODG
104622-RED MDT Chassis – ESS System – Tikka T3 – SA – RH – RED
104622-WHT MDT Chassis – ESS System – Tikka T3 – SA – RH – WHT



Tikka T3 – LA

104623-BBZ MDT Chassis – ESS System – Tikka T3 – LA – RH – BBZ
104623-BLK MDT Chassis – ESS System – Tikka T3 – LA – RH – BLK
104623-BLU MDT Chassis – ESS System – Tikka T3 – LA – RH – BLU
104623-FDE MDT Chassis – ESS System – Tikka T3 – LA – RH – FDE
104623-GRY MDT Chassis – ESS System – Tikka T3 – LA – RH – GRY
104623-ODG MDT Chassis – ESS System – Tikka T3 – LA – RH – ODG
104623-RED MDT Chassis – ESS System – Tikka T3 – LA – RH – RED
104623-WHT MDT Chassis – ESS System – Tikka T3 – LA – RH – WHT



Winchester Model 70 – SA

104624-BBZ MDT Chassis – ESS System – Winchester Model 70 – SA – RH – BBZ
104624-BLK MDT Chassis – ESS System – Winchester Model 70 – SA – RH – BLK
104624-BLU MDT Chassis – ESS System – Winchester Model 70 – SA – RH – BLU
104624-FDE MDT Chassis – ESS System – Winchester Model 70 – SA – RH – FDE
104624-GRY MDT Chassis – ESS System – Winchester Model 70 – SA – RH – GRY
104624-ODG MDT Chassis – ESS System – Winchester Model 70 – SA – RH – ODG
104624-RED MDT Chassis – ESS System – Winchester Model 70 – SA – RH – RED
104624-WHT MDT Chassis – ESS System – Winchester Model 70 – SA – RH – WHT

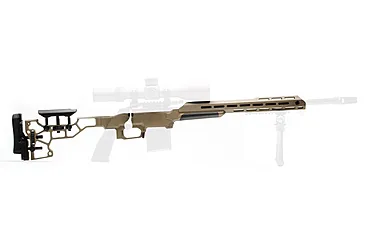

Winchester XPR – SA

104625-BBZ MDT Chassis – ESS System – Winchester XPR – SA – RH – BBZ
104625-BLK MDT Chassis – ESS System – Winchester XPR – SA – RH – BLK
104625-BLU MDT Chassis – ESS System – Winchester XPR – SA – RH – BLU
104625-FDE MDT Chassis – ESS System – Winchester XPR – SA – RH – FDE
104625-GRY MDT Chassis – ESS System – Winchester XPR – SA – RH – GRY
104625-ODG MDT Chassis – ESS System – Winchester XPR – SA – RH – ODG
104625-RED MDT Chassis – ESS System – Winchester XPR – SA – RH – RED
104625-WHT MDT Chassis – ESS System – Winchester XPR – SA – RH – WHT

Remington 700 – SA – LH

104626-BBZ MDT Chassis – ESS System – Remington 700 – SA – LH – BZ
104626-BLK MDT Chassis – ESS System – Remington 700 – SA – LH – BLK
104626-BLU MDT Chassis – ESS System – Remington 700 – SA – LH – BLU
104626-FDE MDT Chassis – ESS System – Remington 700 – SA – LH – FDE
104626-GRY MDT Chassis – ESS System – Remington 700 – SA – LH – GRY
104626-ODG MDT Chassis – ESS System – Remington 700 – SA – LH – ODG
104626-RED MDT Chassis – ESS System – Remington 700 – SA – LH – Red
104626-WHT MDT Chassis – ESS System – Remington 700 – SA – LH – WHT

Remington 700 – LA – LH

104627-BBZ MDT Chassis – ESS System – Remington 700 – LA – LH – BBZ
104627-BLK MDT Chassis – ESS System – Remington 700 – LA – LH – BLK
104627-BLU MDT Chassis – ESS System – Remington 700 – LA – LH – BLU
104627-FDE MDT Chassis – ESS System – Remington 700 – LA – LH – FDE
104627-GRY MDT Chassis – ESS System – Remington 700 – LA – LH – GRY
104627-ODG MDT Chassis – ESS System – Remington 700 – LA – LH – ODG
104627-RED MDT Chassis – ESS System – Remington 700 – LA – LH – RED
104627-WHT MDT Chassis – ESS System – Remington 700 – LA – LH – WHT

Tikka T3 – SA – LH

104628-BBZ MDT Chassis – ESS System – Tikka T3 – SA – LH – BBZ
104628-BLK MDT Chassis – ESS System – Tikka T3 – SA – LH – BLK
104628-BLU MDT Chassis – ESS System – Tikka T3 – SA – LH – BLU
104628-FDE MDT Chassis – ESS System – Tikka T3 – SA – LH – FDE
104628-GRY MDT Chassis – ESS System – Tikka T3 – SA – LH – GRY
104628-ODG MDT Chassis – ESS System – Tikka T3 – SA – LH – ODG
104628-RED MDT Chassis – ESS System – Tikka T3 – SA – LH – RED
104628-WHT MDT Chassis – ESS System – Tikka T3 – SA – LH – WHT

Tikka T3 – LA – LH

104629-BBZ MDT Chassis – ESS System – Tikka T3 – LA – LH – BBZ
104629-BLK MDT Chassis – ESS System – Tikka T3 – LA – LH – BLK
104629-BLU MDT Chassis – ESS System – Tikka T3 – LA – LH – BLU
104629-FDE MDT Chassis – ESS System – Tikka T3 – LA – LH – FDE
104629-GRY MDT Chassis – ESS System – Tikka T3 – LA – LH – GRY
104629-ODG MDT Chassis – ESS System – Tikka T3 – LA – LH – ODG
104629-RED MDT Chassis – ESS System – Tikka T3 – LA – LH – RED
104629-WHT MDT Chassis – ESS System – Tikka T3 – LA – LH – WHT

Savage – SA – LH

104630-BBZ MDT Chassis – ESS System – Savage – SA – LH – BBZ
104630-BLK MDT Chassis – ESS System – Savage – SA – LH – BLK
104630-BLU MDT Chassis – ESS System – Savage – SA – LH – BLU
104630-FDE MDT Chassis – ESS System – Savage – SA – LH – FDE
104630-GRY MDT Chassis – ESS System – Savage – SA – LH – GRY
104630-ODG MDT Chassis – ESS System – Savage – SA – LH – ODG
104630-RED MDT Chassis – ESS System – Savage – SA – LH – RED
104630-WHT MDT Chassis – ESS System – Savage – SA – LH – WHT

Savage – LA – LH

104631-BBZ MDT Chassis – ESS System – Savage – LA – LH – BBZ
104631-BLK MDT Chassis – ESS System – Savage – LA – LH – BLK
104631-BLU MDT Chassis – ESS System – Savage – LA – LH – BLU
104631-FDE MDT Chassis – ESS System – Savage – LA – LH – FDE
104631-GRY MDT Chassis – ESS System – Savage – LA – LH – GRY
104631-ODG MDT Chassis – ESS System – Savage – LA – LH – ODG
104631-RED MDT Chassis – ESS System – Savage – LA – LH – RED
104631-WHT MDT Chassis – ESS System – Savage – LA – LH – WHT

Daniel Defense Delta 5 – SA

104987-BBZ MDT Chassis – ESS System – Daniel Defense Delta 5 – SA – RH – BBZ
104987-BLK MDT Chassis – ESS System – Daniel Defense Delta 5 – SA – RH – BLK
104987-BLU MDT Chassis – ESS System – Daniel Defense Delta 5 – SA – RH – BLU
104987-FDE MDT Chassis – ESS System – Daniel Defense Delta 5 – SA – RH – FDE
104987-GRY MDT Chassis – ESS System – Daniel Defense Delta 5 – SA – RH – GRY
104987-ODG MDT Chassis – ESS System – Daniel Defense Delta 5 – SA – RH – ODG
104987-RED MDT Chassis – ESS System – Daniel Defense Delta 5 – SA – RH – RED
104987-WHT MDT Chassis – ESS System – Daniel Defense Delta 5 – SA – RH – WHT

Reviews

There are no reviews yet.

Be the first to review “MDT ESS CHASSIS SYSTEM”

Related products

Quick View

MDT

MDT SRS SHORT – SKELETON RIFLE STOCK SHORT

R 13,909.11 Incl. VAT
Select options
Quick View

MDT

MDT PISTOL GRIP WOOD

R 2,941.00 Incl. VAT
Add to basket
Quick View

MDT

MDT ESS CHASSIS BASE

R 13,400.00 Incl. VAT
Select options
Quick View

MDT

MDT VERTICAL GRIP ELITE

R 1,871.22 Incl. VAT
Select options
Quick View

MDT

MDT M-LOK Rear Bag Rider Aluminum – BLK

R 1,603.00 Incl. VAT
Select options
Quick View

MDT

MDT PISTOL GRIP CARBON FIBER

R 5,446.00 Incl. VAT
Select options
Quick View

MDT

MDT ONE PIECE INTERNAL WEIGHT

R 4,012.00 Incl. VAT
Add to basket
Quick View

MDT

MDT Accessories – Buttstock Weight

R 1,871.00 Incl. VAT
Select options
This site uses cookies to offer you a better browsing experience. By browsing this website, you agree to our use of cookies.
More info Accept
