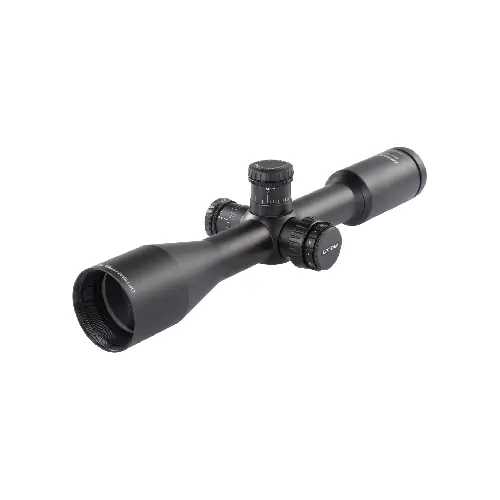

OPTISAN 04020 ES 10X44I
Optisan co-develops shooting systems with top shooters to withstand the rigors of the field while excelling at the demands of competition. Our meticulous testing and constant improvements have won the approval of European champion shooters. Before it becomes part of your shooting system, each of the 90-150 components that will become your optic are subjected to more than 200 quality control points, all of which are done 100% in-house
Description
The EVX line is re-engineered to top the generation I flagship Viper line first introduced back in 2006. The new Optisan EVX Line is designed and engineered for sub-MOA precision shooting and hunting and is field-tested holds up to .308 and .300WM. The GEN II redesigned optical system has a 25% larger field of view with a generous eye box which shooters will find handy encountering quick target acquisition. The eye relief is from 3.7 inches and is consistent throughout the magnification range so the head position stays steady. Optisan is now offering EVX range in both the first and second focal planes. All EVX scopes now come in a mil/mil matching turret/reticle and a redesigned mil-hash reticle for long-range holdover as well!
OPTICAL DATA | |
---|---|
Magnification (High) | 10X |
Magnification (Low) | 10X |
Objective Diameter (mm) | 44mm |
Outer dia. Objective (mm) | 53mm |
FOV (min.mag)(ft/100yds) | 11 |
FOV (max.mag)(ft/100yds) | 11 |
Eye relief (in) | 3.8” |
Exit Pupil (Max mag.) (mm) | 4.4mm |
Exit Pupil (min. mag.) (mm) | 4.4mm |
Diopter Range (dpt) | +2/-2 |
Parallax Adjustment | 10yds – infinity (100yds parallax free) |
Coating | Fully Multi-coated |
MECHANICAL DATA | |
Tube Construction | One-piece tube, aircraft aluminum |
Elevation Adjustment (value per click) | 0.1 mrad |
Windage Adjustment (value per click) | 0.1 mrad |
Turret Style (Elevation) | Push pull lockable |
Turret Style (Windage) | Push pull lockable |
Travel Per Rotation | 4.8 mil |
Elevation adj. range | >= 15 mil |
Windage adj. range | >= 15 mil |
Eye Piece Diameter (in) | 1.73” |
Eye Piece Diameter (mm) | 44mm |
Eye Piece Length (in) | 2.8” |
Eye Piece Length (mm) | 72.2mm |
Mounting Length rear (mm) | 65mm |
Mounting Length front (mm) | 50mm |
Tube Dia. (mm) | 30mm |
Length (in) | 13.30” |
Length (mm) | 338mm |
Weight (g) | 693g |
Weight (oz) | 24.4oz |
Surface Finish | Matte Black |
ENVIRONMENT DATA | |
Functional temperature | -20 ~ 50 degree celcius |
Storage temperature | -20 ~ 50 degree celcius |
Submersion tightness | JIS 7 |
RETICLE DATA | |
Reticle | SFPMH10X |
Calibrated Ranging Power | 10X |
Focal plane | Second |
Illumination | 6 Steps illumination with off setting in between |
DELIVERY INCLUDE | |
Standard Accessories | 3″ Sidewheel 3″ Sunshade Metal filp up covers |
