DESCRIPTION

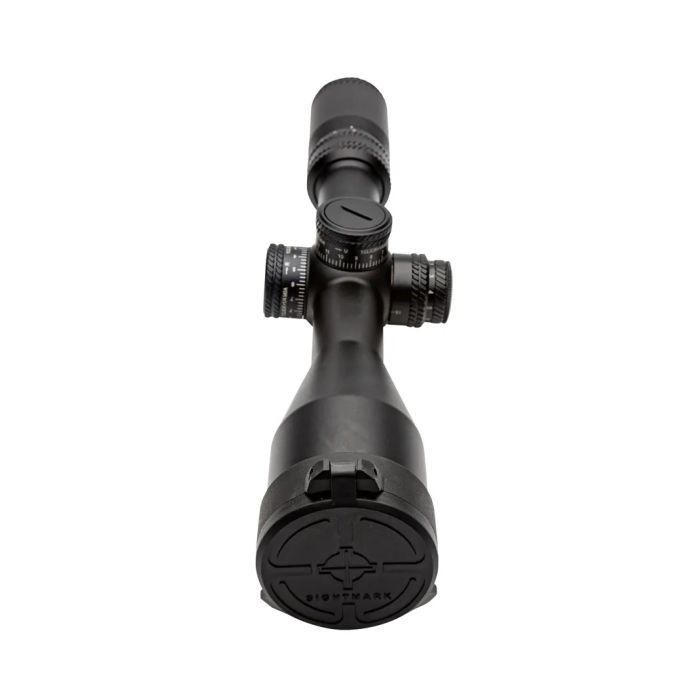

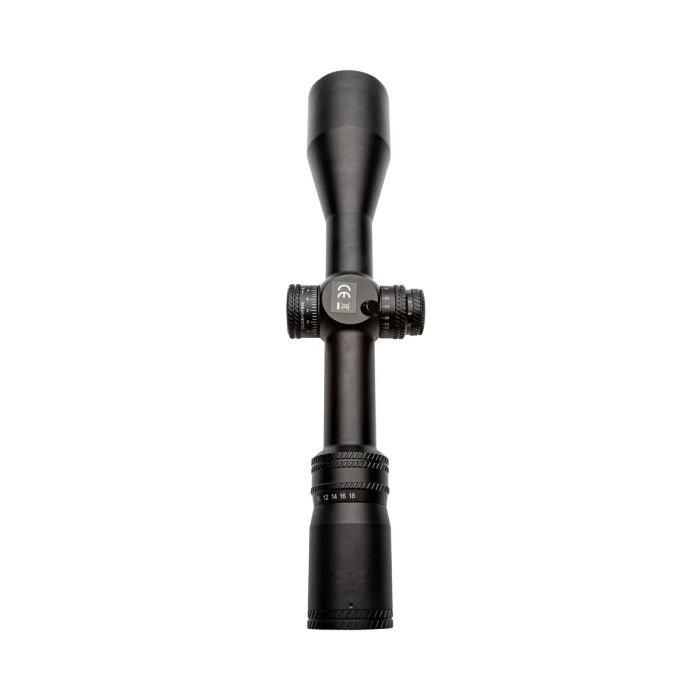

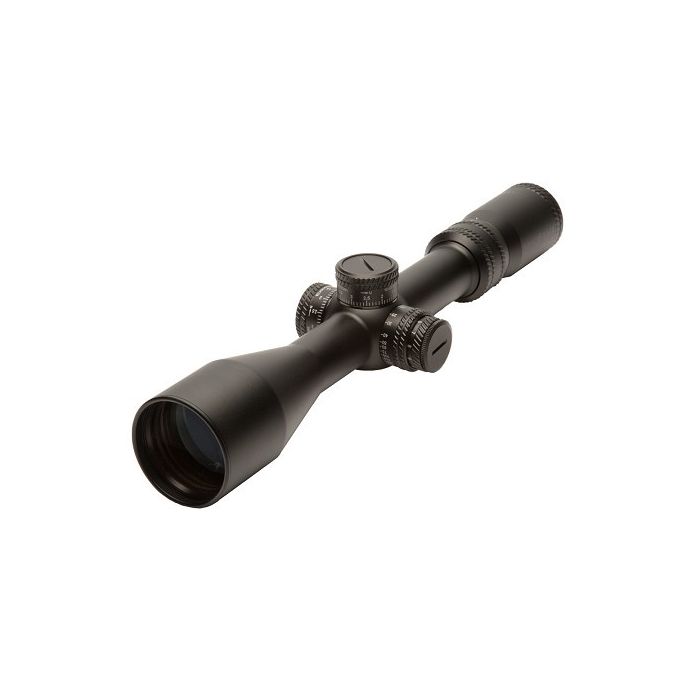

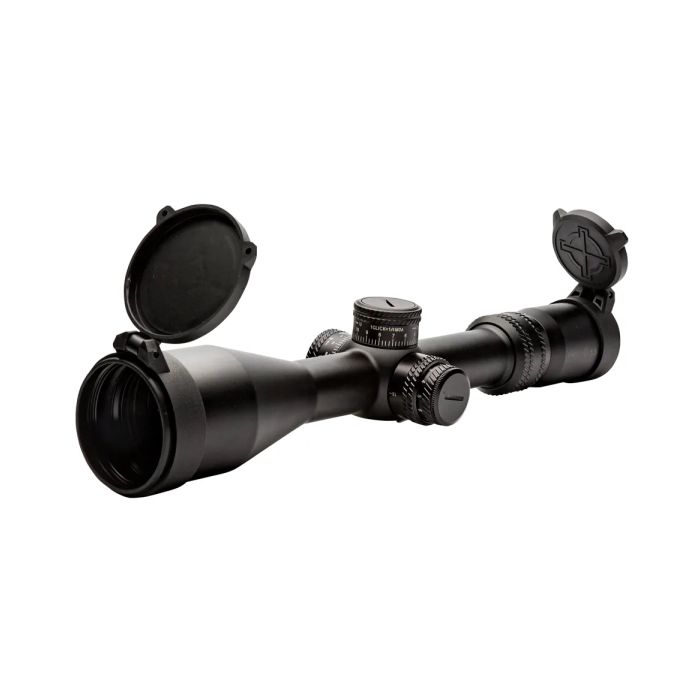

The Sightmark Citadel 3-18X50 Riflescope – LR1 MOA Reticle is designed for medium-to-long range shooting, competition shooting, law enforcement and hunting. The Citadel features a 6x optical system, a fully multi-coated lens, exposed locking turrets and a red illuminated reticle with 11-brightness settings. The first focal plane reticle means the size of the reticle remains the same in any magnification, and holdovers and range finding can be performed. The new reticle, LR1, is a 1/4 MOA reticle, allowing each click adjustment to move the point of impact of an inch at 100 yards. The riflescope is crafted out of a single shockproof aircraft-grade aluminium 30mm tube and is IP67 waterproof and dustproof. The optic comes complete with flip-up covers, a throw lever to adjust the magnification with ease and a sunshade.
FEATURES
- 6:1 zoom ratio
- Exposed low-profile locking turrets
- First focal plane reticle
- Red illuminated reticle
- Single-piece 30mm tube
- Aircraft grade aluminium
- Hard anodized finish
- Shockproof/fog-proof/waterproof
SPECIFICATIONS
| Reticle, Type | LR1 (MOA) |
| Reticle | Etched glass |
| Reticle, Colour | Red |
| Illuminated (Yes/No) | Yes |
| Reticle Brightness Setting | 0-11 |
| Finish/Colour | Matte black |
| Magnification | 3-18 x |
| Diameter, Objective Lens | 50 mm |
| Diameter, Eyepiece | 1.6 / 40 in / mm |
| Diameter, Exit Pupil | 7.4 – 2.7 mm |
| Eye Relief | 4.6 – 3.7 / 116.8 – 94 in / mm |
| Field Of View, m@100m | 11 – 1.9 |
| Field Of View, ft@100yd | 33 – 5.8 |
| Diopter Adjustment | +2 to -2 |
| Diameter, Tube | 30 / 1.18 mm / in |
| Parallax Setting | 15 – ∞ yds |
| MIL Adjustment (One Click) | 1/4 MOA |
| Windage Range Of Adjustment | 60 MIL |
| Elevation Range Of Adjustment | 60 MIL |
| Windage & Elevation, Lock | Yes |
| Maximum Recoil | .338 |
| Battery Type | CR2032 |
| Battery Life, Hours | 100 – 70 |
| Battery Voltage, V | 3 |
| Sunshade | Yes |
| Nitrogen Filled | Yes |
| Shockproof | Yes |
| Fog Proof | Yes |
| Focal Plane | 1st |
| IP Rating (Waterproof) | IP 67 – waterproof and dustproof |
| Body Material | Aluminium |
| Lens Coating | Fully multi-coated |
| Operating Temperature | 0 to 120 / -17 to 49 (F / C) |
| Length | 13 / 330 in / mm |
| Width | 3.1 / 79 in / mm |
| Height | 2.24 / 56 in / mm |
| Weight, oz | 26.1 oz |
| Weight | 2 kg |
|---|---|
| Dimensions | 45 × 15 × 15 cm |
Brand
SightMark
