STEINER Ranger 8 4-32×56 BT
HIGH-CONTRAST OPTIC
Ensures fast, brilliant and high-contrast images with high edge-to-edge sharpness and outstanding detail recognition.
ZERO MODE
The elevation turret can always be reliably turned back to 0. Especially build for dark environments and quick changing target acquision.
XL-FIELD OF VIEW
For the greatest possible situational awareness and the essential safety in every situation.
INTEGRATED BALLISTIC TURRET
The turret allows the shooter to compensate the bullet drop reliably and accurately at different distances. By using 4 different numbered rings, the shooter can set marks for the preferred distances.
EXTREMELY VERSATILE
The 8x zoom makes the Ranger 8 an ultra-versatile riflescope. Game can be safely and accurately spotted at any distance. In any situation, but especially in situations where distances change quickly, the Ranger 8 will lead you to success.
Since its introduction in 2015, the Steiner Ranger series has developed into one of the most successful rifle scope series in Europe. In the constant effort to further improve our products and to make them more advanced and reliable, the Ranger 8 series has been further optimized and now fascinates with numerous improvements and perfected features.
The new Ranger 8 impresses with an extended field of view, a The usual high light transmission and an optimized anodizing all together in an 8x magnification. In addition, the series was supplemented by a few models: In addition to the high-magnification rifle scopes, models with an integrated ballistic tower are now also part of the series. This outstanding series not only combines perfect optical quality with reliable mechanics and the usual Steiner robustness, it also enables quick response at rapidly changing distances in every situation.
The new Ranger 8 rifle scope series thus achieves the demanding and varied events of hunters fully meet and thus becomes an indispensable Companion for every hunter.
- XL-field of view – For the greatest possible overview and the necessary security in every situation.
- Steiner High-Contrast Optik – Ensures bright, brilliant and high-contrast images with high edge sharpness and outstanding detail recognition.
- Improved light transmission – The light transmission is over 92% and thus ensures reliably bright images, even under difficult lighting conditions.
- Zero Mode – The height adjustment turret can always be reliably turned back to 0. Specially designed for dark environments and rapidly changing target acquisition
- Elegant, light and elegant design – The tubular body made of one piece is covered with a satin-matt and scratch-resistant hard anodizing according to military standards and offers enough space for mounting attachments with smooth transitions and elegant radii.
- Fiber point – reticle The crystal-clear illuminated dot can be precisely adjusted to any lighting situation.
Optical features
- Magnification min./max. 4x / 32x
- Effective lens diameter 56 mm – 34 mm
- Exit pupil 8,5 mm – 1,7 mm
- Field of view at 100m 9,46 m – 1,18 m
- Eye distance 95 mm
- Dioptric compensation -3 / +2
- Parallax-free 20m(y) to infinity
Function & Equipment
- High-Performance optics High Contrast
- Nitrogen filling Yes

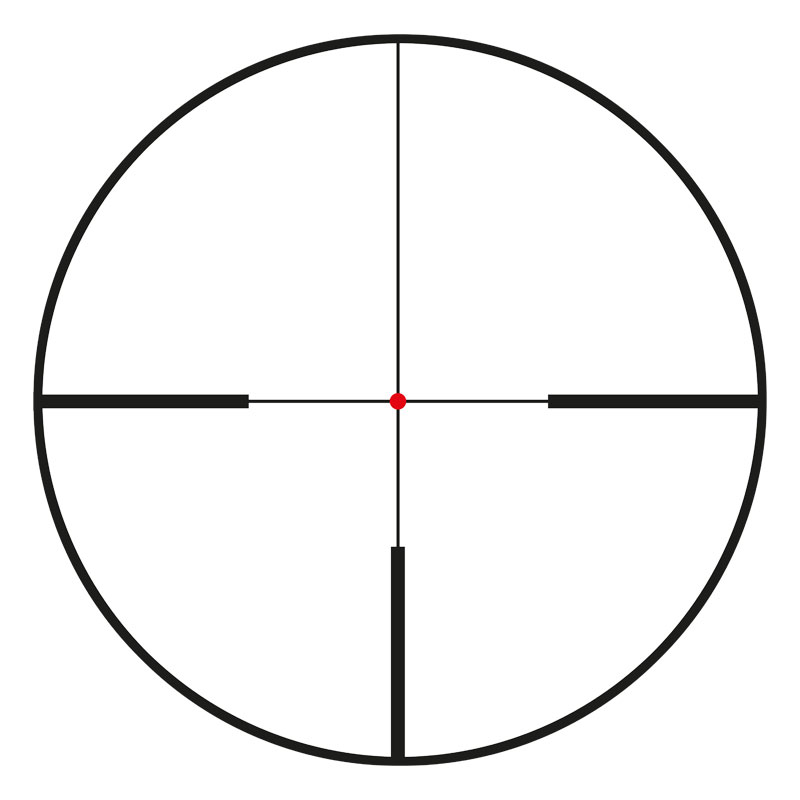

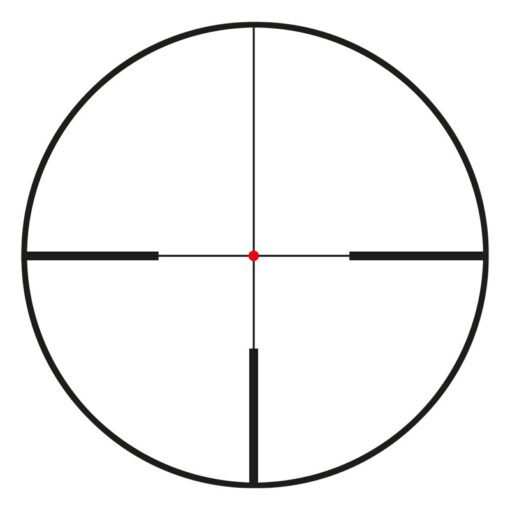

- Reticle 4-AI fiber dot
- Reticle position 2nd focal plane
- Reticle adjustment per click at 100 m 1 cm / 100 m
- Max. Travel at 100 m height / side +/- 95 cm
- Reticle illumination 11 levels (5x day, 6x night) with OFF position between the levels, 6h Auto-Off
- Functional area -25°C to +63°C
- Pressurised waterproof 1 m
General features & accessories
- Depth 385 mm
- Weight 774 g
- Centre tube diameter 30 mm
- Lens-tube body diameter 64 mm
- Accessories flip up covers (Obj+Oc)
- Warranty 10 years, 2 years on electronic parts
- Article number 3004904704
