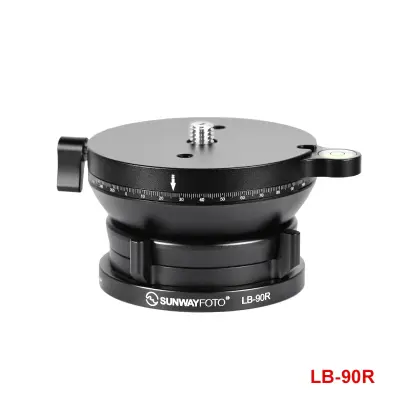

Sunwayfoto Heavy Duty Levelling Head Specs:

Platform Diameter:3. 5in.(90mm)

Height:2.2in.(57mm)

Tilting Angle: +15°

Base Diameter:3.2in.(82mm)

Load Capacity:55.1lb.(25kg)

Net Weight:1.2lb.(556g)

Top Stud: UNC3/8″-20

Base Socket Thread: UNC3/8″-16

Levelling base LB-90R is one levelling tool in panoramic system, working with the tripod for landscape shooting, especially ideal for outdoors shooting.

Strong and durable: All-metal structure, T6061 aero-space grade aluminum main body material, light yet strong, easy to carry; Elaborately CNC machined, hard-anodized finish ensures it’s resistant to abrasion and corrosion.

Ultra-big load capacity: Hemisphere design, maximized contact area with the base for bigger load capacity compared with other ball heads. Suitable for panoramic stitching system, and heavy equipment like video camera. Max load capacity of 55lb. (25KG).

Smooth operation: Exquisitely CNC machined to make sure the base of the hemisphere is perfectly fit with the base and use professional damping oil for its smooth and easy operation.

Safe and steady: The overall height of LB-90R is only 1.89in.(48mm), with low gravity center, very steady and safe. Compatible with equipment of high gravity center, such as 6×6, 6×7 medium format camera or view camera.
