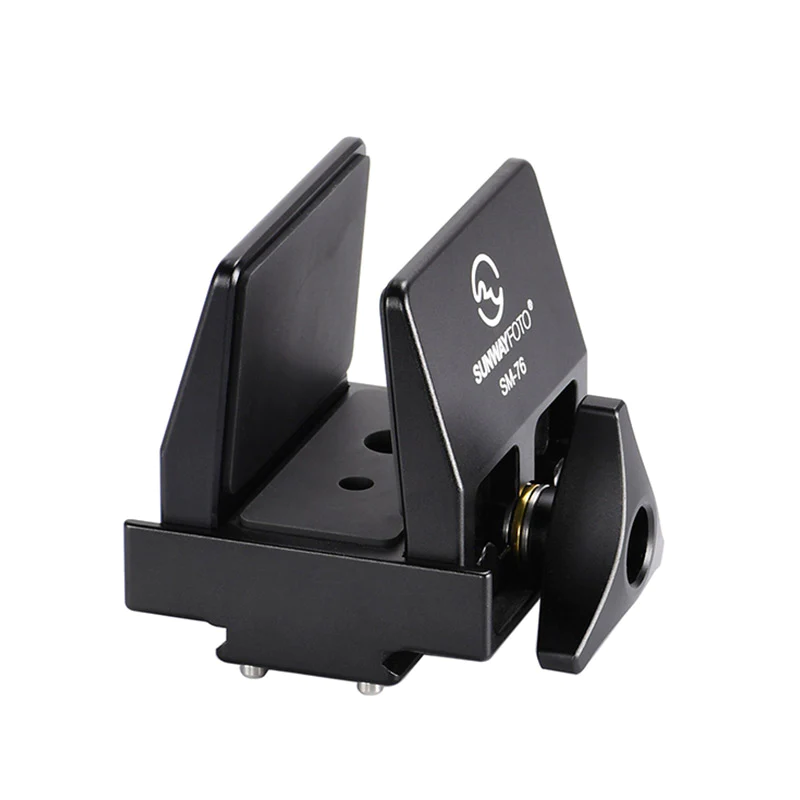

Sunwayfoto Saddle Mounts

Model: SM-76

Sunwayfoto Saddle Mounts, SM-76 Arca Swiss Saddle, capable of supporting heavy equipment other than cameras to be mounted directly on Arca-Swiss standard tripod.

T6061 Aluminum main body material, elaborately CNC machined with Type-III hard-anodized finish ensures it’s resistant to corrosion and abrasion; Ideal to work outdoors under extremely harsh environment.

Base of the saddle is Arca standard QR plate to be mounted on Arca standard ball head directly; Safety stop screws avoid dropping from the ball head by powerful shock. 1/4″ and 3/8″ mounting holes work with tripods without Arca dovetail structure.

Double-headed T-shaped screw structure at the base, the center position will stay in place when adjusting the width of the base so as to ensure the precision of the equipment.

Rubber pads on the inner side of the saddle increase friction with the loaded equipment and provide protection from scratches after powerful shock.

Lightweight design, weighing only 16.2oz(460g).3.62*3.23*3.27 inch(92*82*83mm), compatible with equipment width between 1.14inch (29mm) and 2.68inch (68mm).
