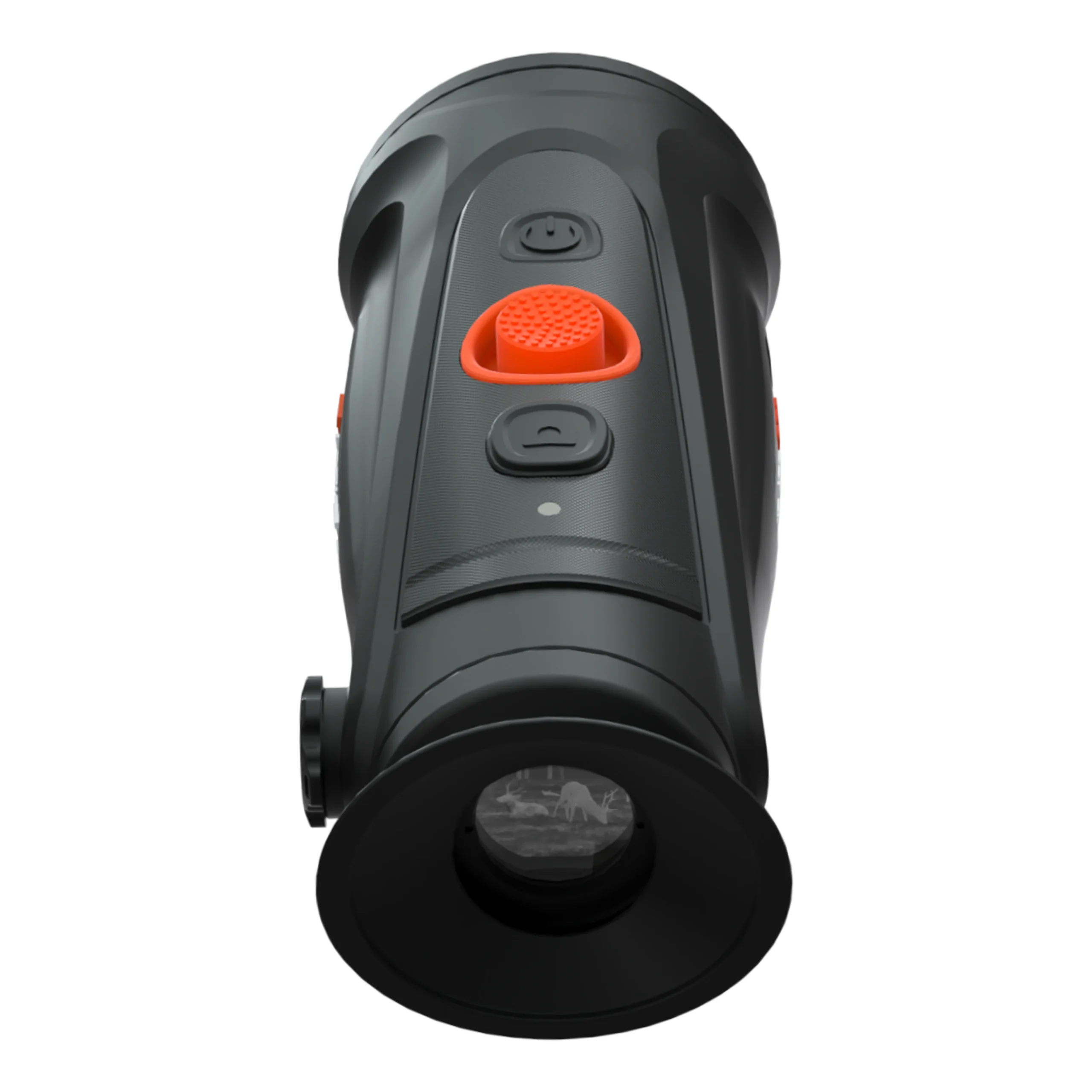

ThermTecThermTec Cyclops Pro CP335P Thermal Imaging Camera
ThermTec Cyclops Monoculars: Intuitive Control and Advanced Features
The ThermTec Cyclops Monoculars are designed to be the most user-friendly and intuitive thermal imaging devices on the market. With a unique joystick control method, operating these monoculars is straightforward and efficient. Simply move the joystick to the right to change color palettes, push it forward to zoom in smoothly, and pull it backward to zoom out with ease.
What Sets the ThermTec Cyclops Apart?
While many thermal monoculars offer exceptional image quality through advanced thermal sensors, the ThermTec Cyclops distinguishes itself with several unique features. A double tap on the joystick brings up the main control menu, allowing you to adjust image settings like brightness, contrast, sharpness, and de-noise according to your preferences. The inclusion of Electronic Image Stabilization ensures that you get clear and stable images, even in challenging conditions.
In addition, the Cyclops monoculars feature bi-directional Wi-Fi, enabling remote control through the ThermTec Smart Thermal app, available on both Android and iOS platforms.
Specifications
Sensor Parameters
- Detector Type: Vox Microbolometer
- Resolution / Pixel Spacing: 384×288 / 12µm
- NETD: 25mk@300k
- Frame Rate: 50Hz
- Lens: 35mm (F#1.0, manual focus)
- FOV: 7.5° x 5.6°
Image Processing
- Digital Zoom / Magnification: 1-6x continuous / 3.36x
- Color Palette: 5+
- Noise Reduction: 3D noise reduction
- Image Enhancement: IDE HDR
Display
- OLED: 0.39 inch, 1024×768 resolution
- Diopter Control: -5 ~ +5
- Eye Distance: 40mm
Functionality
- OLED Modes: 8 modes
- Language: English
- Reticle: 6+, adjustable coordinates
- Memory Card: 16G
- Heat Track: Yes
- AI Distance Measurement: Yes
- Laser Indicator: Yes
- Photo, Record, Playback: Yes
- GPS: Yes
Power and Connectivity
- Battery Type: Internal Li-Ion Cell 18650 Li battery x 2
- Battery Life: Continuous working time 12h
- Interface:
- Type-C: Power charge, read data, output analog video
- Wi-Fi: Two-way Wi-Fi connection, APP remote control
Environmental Parameters
- Working Temperature: -20°C to +55°C
- Protection Level: IP67, 1-meter drop resistance
Physical Parameters
- Weight: 470g (with battery)
- Size: 67mm × 63mm × 190mm
Accessories
- External Cable: Analog video cable, USB data cable
- Other Accessories: Wrist strap, plush bag, user manual
The ThermTec Cyclops Monoculars offer a blend of cutting-edge technology and intuitive control, making them a top choice for users seeking both performance and ease of use in thermal imaging.
