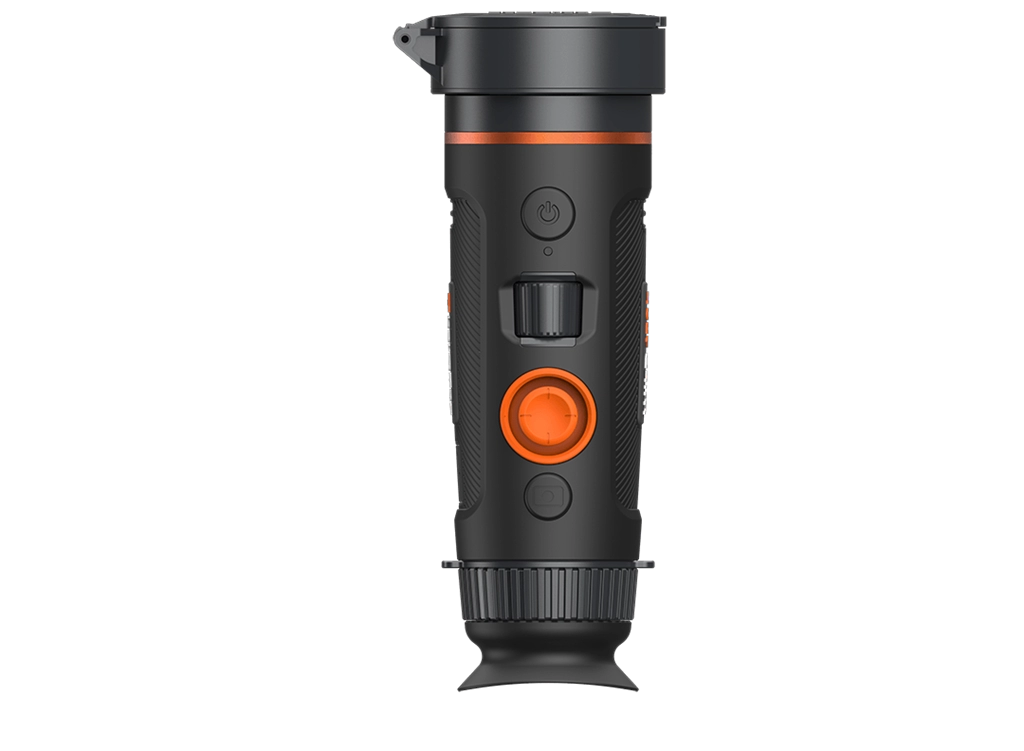

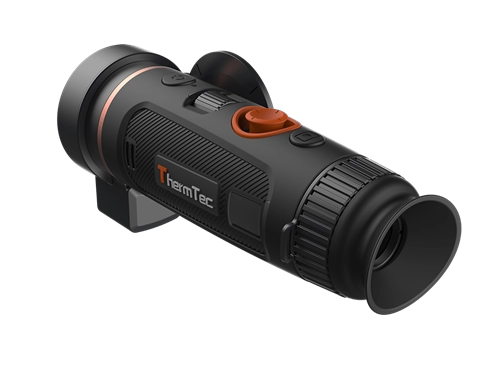

ThermTec Wild 335 Thermal Imaging Camera

The Wild 335 is a high-performance thermal monocular designed for various applications including surveillance, hunting, and search and rescue operations. It features a quality 35mm f/0.8 lens that captures thermal radiation with a field of view (FOV) of 7.5 x 5.6 degrees. The monocular is equipped with a 4x digital zoom for enhanced detail capture, with an eye relief distance of 40mm and an exit pupil diameter of 6mm.

The core of the Wild 335 includes an uncooled 12µm sensor with a resolution of 384 x 288 pixels and a refresh rate of 50Hz. It operates within the 8µm to 14µm wavelength range with a NETD (Noise Equivalent Temperature Difference) of <18mK, ensuring clear and precise thermal imaging.

The device is built to withstand rugged conditions with an IP67 rating, offering protection against dust, shocks, and water splashes, including submersion. It operates effectively in temperatures ranging from -20°C to 50°C. Compact and lightweight, the Wild 335 measures 190 x 69 x 59mm and weighs 485g.

ThermTec Wild Features

• Replaceable Battery: Provides extended operational time with the flexibility of swapping batteries.
• One Finger Focusing Wheel: Allows for easy and precise focus adjustments.
• Joystick Navigation: Simplifies navigation through the device’s functions and settings.
• Long Battery Life: Ensures extended use without frequent recharging.
• Self-Learning Image Algorithm: Continuously improves image correction through AI technology for optimal performance.
• Magnesium Alloy Housing: Durable and lightweight construction, resistant to harsh conditions.
• 12µm Pixel Size: Offers high-resolution thermal imaging.
• 4x Digital Zoom: Enhances detail at various magnifications.
• 1024×768 AMOLED Display: Provides clear and vivid imagery.
• Available with / without LRF: Option to choose a model with a laser rangefinder for additional functionality.
• Available in 384×288 and 640×512 Resolution: Choice of resolution based on user needs.

Specifications of ThermTec Wild

• Lens: 35 mm
• F-ratio: 0.8
• Diopter Adjustment: -5 to +5
• Eye Relief Distance: 40 mm
• Exit Pupil Diameter: 6 mm
• Optical Zoom: 3.3x
• Digital Zoom: 4x
• Field of View (h/v): 7.5° / 5.6°
• Thermal Type: Uncooled
• Sensor Resolution (h/v): 384 pixels / 288 pixels
• Pixel Pitch: 12 µm
• Sensitivity: 18 mK
• Spectral Range: 8 µm / 14 µm
• Display Resolution (h/v): 1024 pixels / 768 pixels
• Refresh Rate: 50 Hz
• Image Polarity: White Hot, Black Hot, Golden, Red, Green, and Violet
• Output Screen Color: Full color
• Startup Time: 3 seconds

Package Contents

• User Manual
• Lanyard
• Handstrap
• Protective Pouch
• Lens Cloth
• Charger
• 18650 Battery (x2)

ThermTec Wild DRI Ranges

Detection, Recognition, and Identification (DRI) ranges are based on Johnson’s criteria:

• Rabbit:
  • Detection: 525 meters
  • Recognition: 131 meters
  • Identification: 65 meters
• Person:
  • Detection: 1847 meters
  • Recognition: 461 meters
  • Identification: 230 meters
• Vehicle:
  • Detection: 4472 meters
  • Recognition: 1118 meters
  • Identification: 559 meters
