ThermTec Wild 650 Thermal Imaging Camera

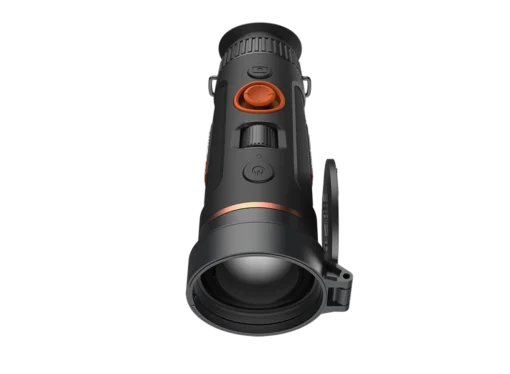

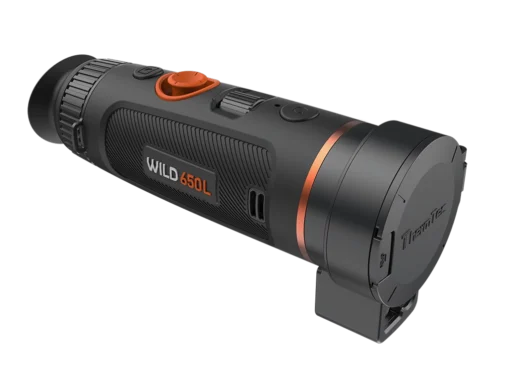

The Wild 650L is a high-performance thermal monocular designed for superior thermal imaging in various applications such as scanning, surveillance, hunting, and search and rescue. It features a 50mm f/0.9 objective lens that captures detailed thermal radiation with a field of view (FOV) of 8.8 x 7 degrees. The monocular offers 4x digital zoom for enlarging specific parts of the image, with an eye relief distance of 40mm and an exit pupil diameter of 6mm.

At the heart of the Wild 650L is an uncooled 12µm sensor with a resolution of 640 x 512 pixels and a refresh rate of 50Hz. The device operates within the 8µm to 14µm infrared spectrum, providing excellent thermal contrast with a NETD (Noise Equivalent Temperature Difference) of <18mK. This combination ensures crisp and clear imaging even in challenging conditions.

The monocular is built to endure tough environments with an IP67 rating, offering protection against dust, shocks, and water splashes, including submersion. It operates effectively in temperatures ranging from -20°C to 50°C. The device measures 190 x 76 x 84mm and weighs 540 grams, making it both robust and portable.

Features of ThermTec

• Replaceable Battery: Allows for extended use with the convenience of swapping batteries.
• One Finger Focusing Wheel: Enables precise focusing adjustments with minimal effort.
• Joystick Navigation: Provides intuitive control and easy navigation through the device’s functions.
• Long Battery Life: Ensures extended operation without frequent recharging.
• Self-Learning Image Algorithm: Utilizes AI technology to optimize image correction and stability.
• Magnesium Alloy Housing: Durable and lightweight construction, resistant to harsh conditions.
• 12µm Pixel Size: Delivers high-resolution thermal imaging.
• 4x Digital Zoom: Enhances image detail at various magnifications.
• 1024×768 AMOLED Display: Offers clear and vivid imagery.
• Available with / without LRF: Option to choose a model with a laser rangefinder for additional functionality.
• Available in 384×288 and 640×512 Resolution: Choose the resolution that best fits your needs.

Specifications of ThermTec

• Lens: 50 mm
• F-ratio: 0.9
• Diopter Adjustment: -5 to +5
• Eye Relief Distance: 40 mm
• Exit Pupil Diameter: 6 mm
• Optical Zoom: 2.8x
• Digital Zoom: 4x
• Field of View (h/v): 8.8° / 7.0°
• Thermal Type: Uncooled
• Sensor Resolution (h/v): 640 pixels / 512 pixels
• Pixel Pitch: 12 µm
• Sensitivity: 18 mK
• Spectral Range: 8 µm / 14 µm
• Display Resolution (h/v): 1024 pixels / 768 pixels
• Refresh Rate: 50 Hz
• Image Polarity: White Hot, Black Hot, Golden, Red, Green, and Violet
• Output Screen Color: Full color
• Startup Time: 3 seconds
• Additional Details: LRF Range 1000m (±1m)

ThermTec Package Contents

• User Manual
• Lanyard
• Handstrap
• Protective Pouch
• Lens Cloth
• Charger
• 18650 Battery (x2)

DRI Ranges

Detection, Recognition, and Identification (DRI) ranges are based on Johnson’s criteria:

• Rabbit:
  • Detection: 750 meters
  • Recognition: 187 meters
  • Identification: 93 meters
• Person:
  • Detection: 2638 meters
  • Recognition: 659 meters
  • Identification: 329 meters
• Vehicle:
  • Detection: 6388 meters
  • Recognition: 1597 meters
  • Identification: 798 meters
