Product Description

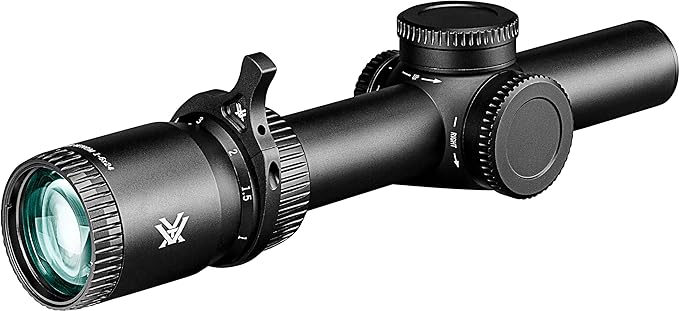

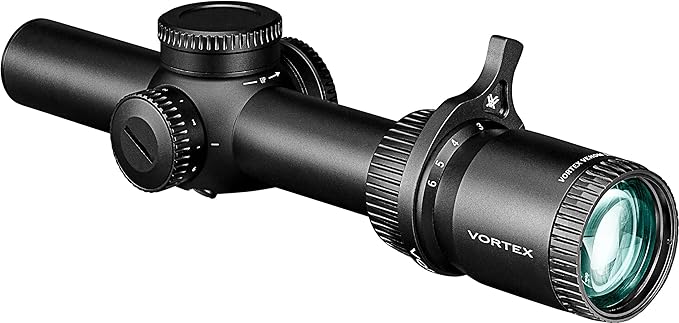

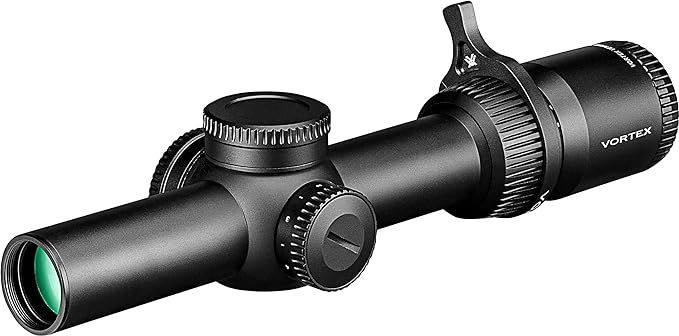

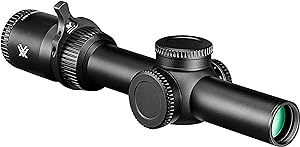

Venom 1-6×24 Second Focal Plane Riflescope – BDC-3 (MOA) Reticle (VEN-1601)
When you’re ready to maximize your capabilities, the Venom 1-6×24 SFP delivers the downrange accuracy, workhorse function, and speed you need for opening the throttle on close- to mid-range engagements. Water, fog, and shockproof. Great glass quality. The illuminated BDC3 reticle makes for quick target acquisition. Standard throw-lever delivers on-the-fly magnification. For entry-level users, it’s a hardworking LPVO built to get you in the game.

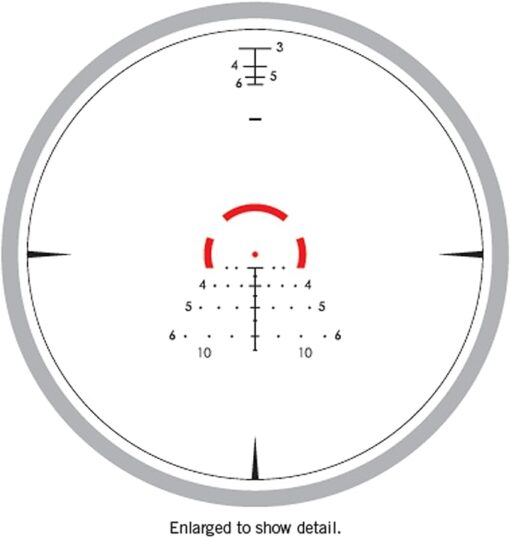

BDC-3 (MOA) Reticle
- Improved for ranging distances and holdovers and illuminated for clarity in low light.
- Use the ranging feature at the top of the reticle to range a silhouette target up to 600 yd.
- BDC subtensions accurately shoot targets from 20-650 yards.
- 5 MPH wind increments

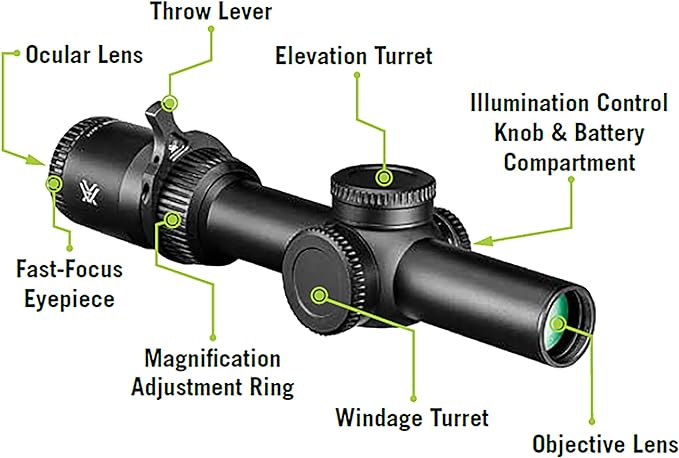

Elevation & Windage Turrets
The Venom1-6×24 SFP riflescope comes equipped with capped Elevation and Windage Turrets. This protects the turrets from accidental adjustment while out in the field, in transit, or in storage. You will need to remove the caps prior to making any adjustments on the turrets.
Use turrets to adjust the point of impact. The Venom 1-6×24 SFP riflescope uses a 1/4 MOA adjustment on both the Windage and Elevation Turrets. Each click will move the point of impact roughly 0.25″ at 100 yards for MOA. The turret on the top of the riflescope is the Elevation Turret, which is used to adjust the point of impact up and down. The turret on the righthand side of the riflescope is the Windage Turret and is used to adjust the point of impact left and right.
Elevation & Windage Turrets
Illumination
Ocular Focus – Fast-Focus Eyepiece
Magnification Adjustment
Venom 1-6×24 | Venom 3-15×44 | Venom 5-25×56 | |
---|---|---|---|
Focal Plane | Second | First | First |
Reticle | BDC3 MOA | EBR-7C (MOA or MRAD) | EBR-7C (MOA or MRAD) |
Illumination | Yes | No | No |
Field of View | 126′ – 20.2′ | 42.4′ – 8.4′ | 21.2′ – 4.7′ |
Turret Style | Capped | Elevation: Exposed, Windage : Capped | Exposed |
Tube Size | 30mm | 34mm | 34mm |
Length | 10.3″ | 13.3″ | 15.3″ |
Weight | 19.5 oz | 28.8 oz | 35.0 oz |
Technical Details
Item Package Dimensions L x W x H | 14 x 4 x 3.5 inches |
---|---|
Package Weight | 0.93 Kilograms |
Item Dimensions LxWxH | 16.4 x 8.2 x 6.8 inches |
Item Weight | 1.21 Pounds |
Brand Name | Vortex |
Warranty Description | Unlimited, unconditional lifetime warranty. |
Model Name | Venom 1-6×24 SFP BDC3 Riflescope |
Color | Black |
Material | Aluminum |
Suggested Users | unisex-adult |
Number of Items | 1 |
Manufacturer | Vortex Optics |
Part Number | VEN-1601 |
Style | Sport |
Included Components | Riflescope, Sunshade, Throw Lever, Flip Caps, Lens Cloth, CR2032 Battery, 2mm Hex Wrench |
Sport Type | Shooting |
