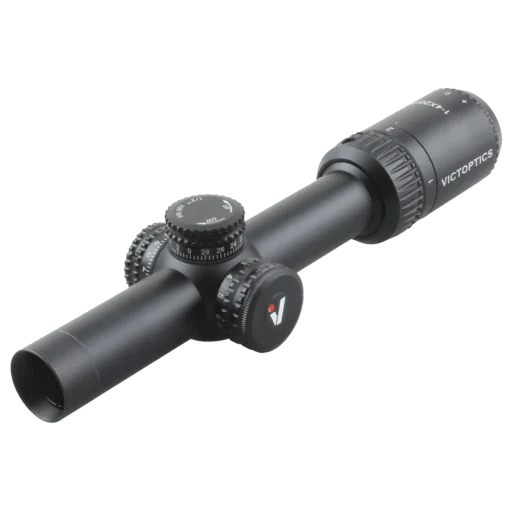

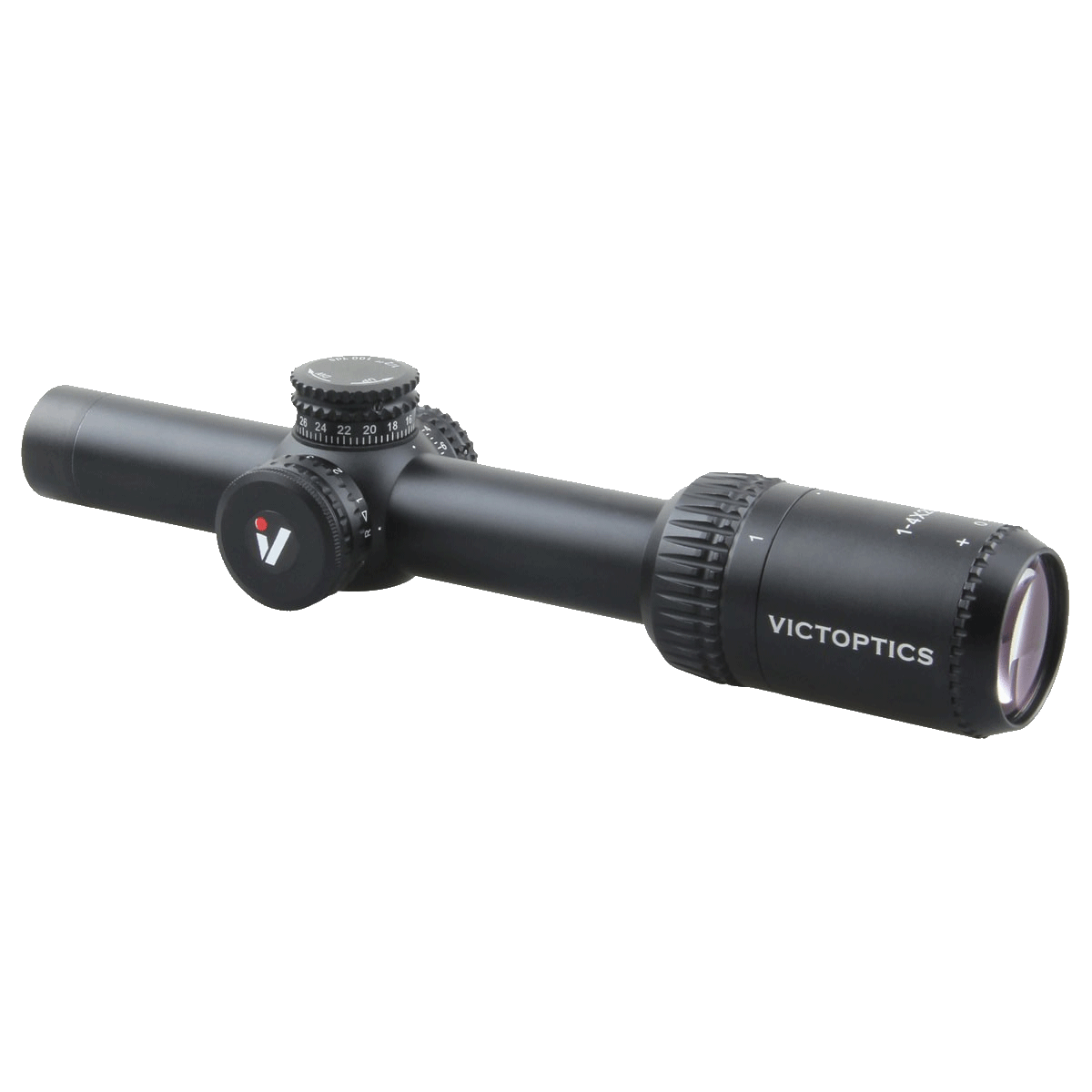

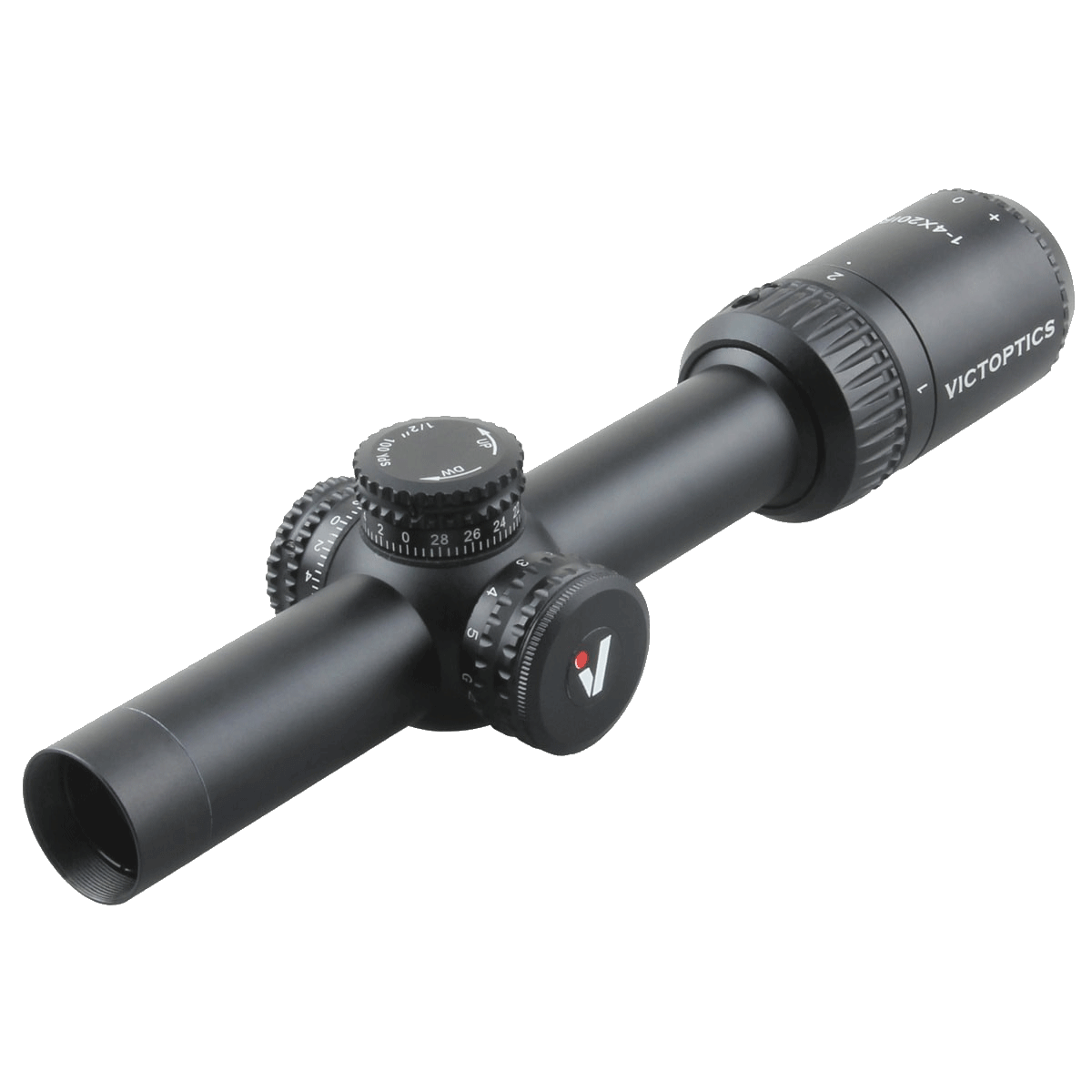

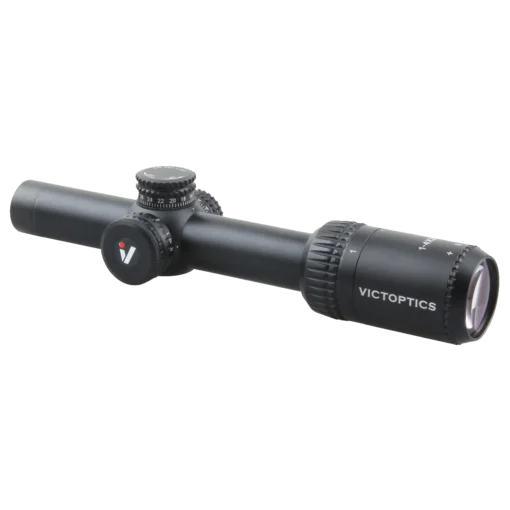

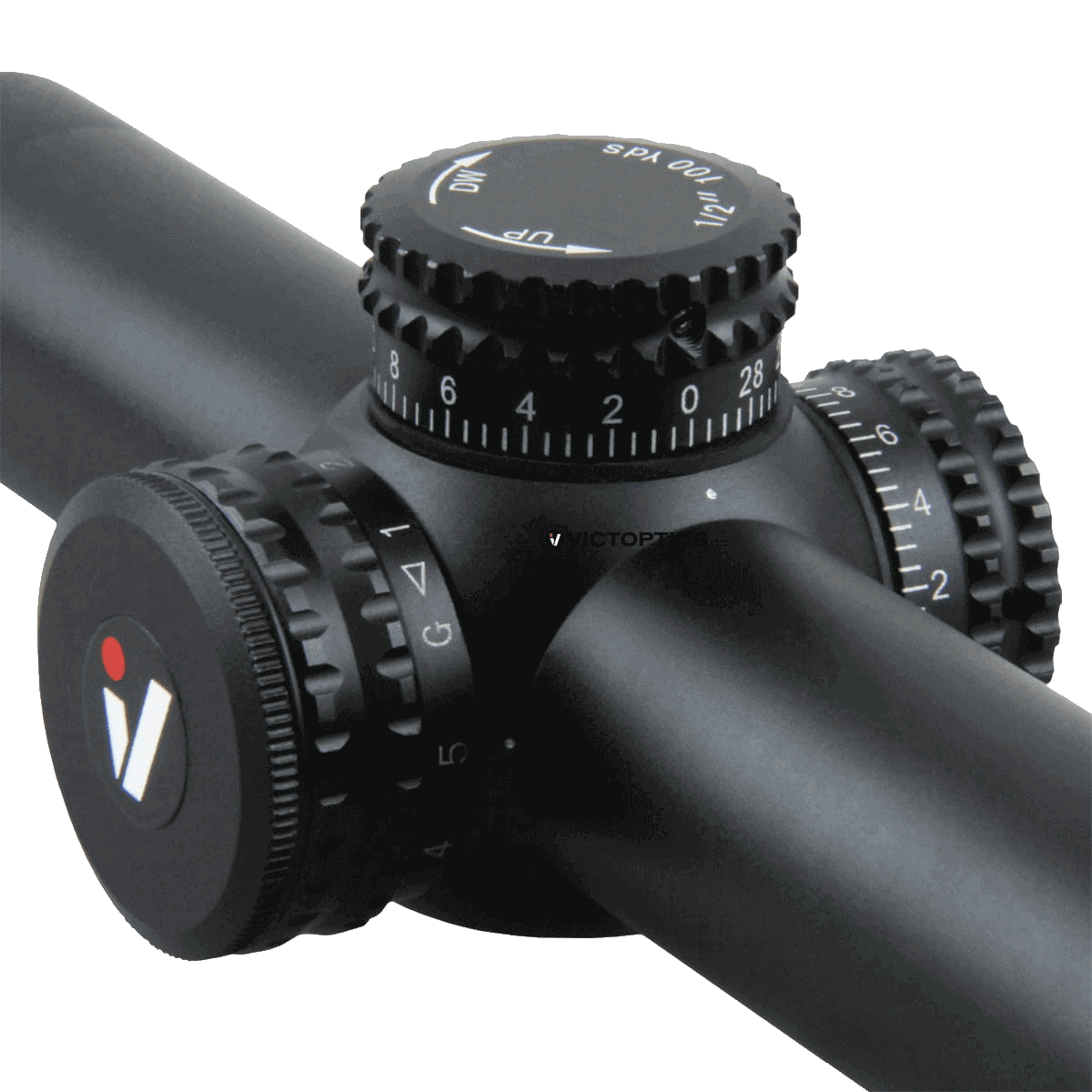

Victoptics ZOD 1-4x20IR

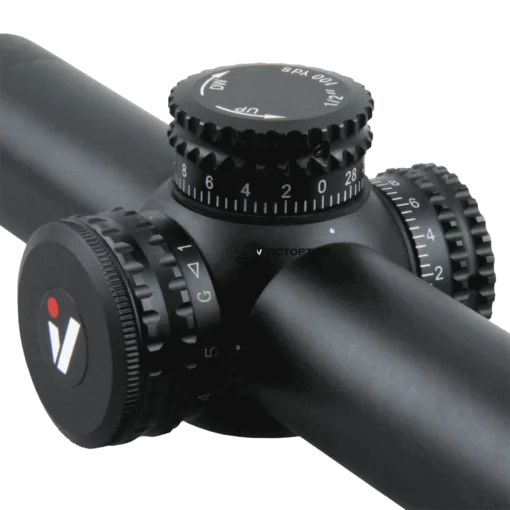

- 25.4mm 1″ Monotube, Fully Multi Coated, Red & Green Illumination, 1/2 MOA Turret Adjustment

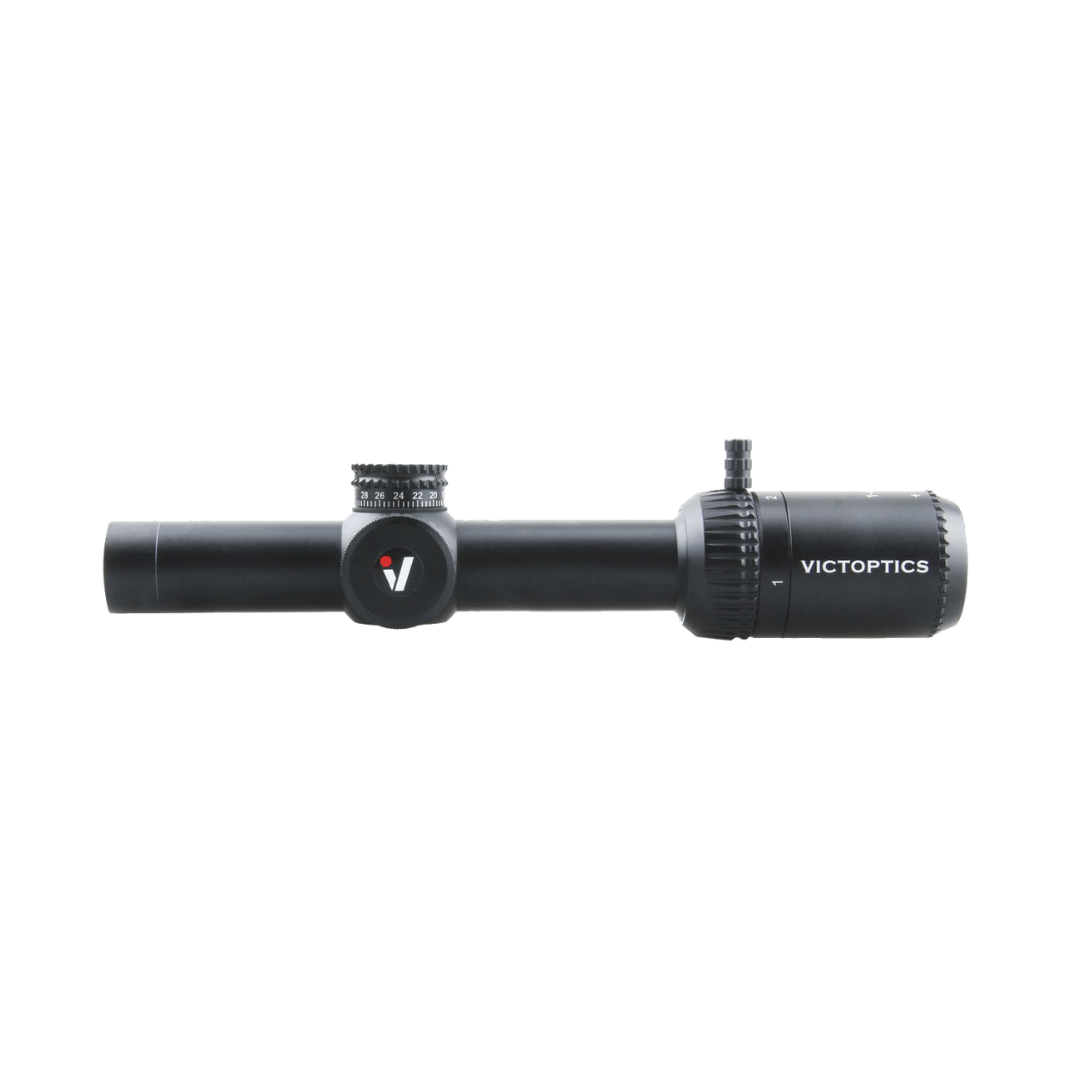

- VMD-2 Mil & Ranging Reticle, Power Ring Throw Lever, Long Eye Relief, Compact and Light
| Thermal - Magnification | 1-4x |
|---|---|
| Thermal - Field of View | 20.7 / 7.2m @91.4m |
| Thermal - Eye Relief | 11.2 / 9.5cm |
| Thermal - Battery Type | CR2032 |
| Thermal - Mount Type | Scope Rings |
| Thermal - Water Resistance Level | Waterproof |
| Thermal - Shockproof | Yes |
| Thermal - Fogproof | Yes |
| Bipod - Mount Type | Scope Rings |
| Optic - Colour | Black matte |
| Optic - Mount Type | Scope Rings |
| Optic - Objective Lens | 20mm |
| Optic - Reticle | VMD-2 |
| Optic - Parallax | Side focus |
| Optic - Magnification | 1-4x |
| Optic - Optical System | N/A |
| Optic - Scope Tube | 25.4mm (1 inch) |
| Optic - Illumination | yes |
| Optic - Field of View | 20.7 / 7.2m @91.4m |
| Optic - Eye Relief | 11.2 / 9.5cm |
| Optic - PX/Focus | N/A |
| Optic - Turret Type | N/A |
| Optic - Click Value | 1/2 MOA |
| Optic - Windage Turret Clicks (max) | 200MOA |
| Optic - Exit Pupil | 20 / 5mm |
| Optic - Ocular Type | N/A |
| Optic - Power Selector | N/A |
| Optic - Lens Coating | Fully Multi-Coated |
| Optic - Focal Plane | Second Focal Plane (SFP) |
| Optic - Water Resistance Level | Waterproof |
| Optic - Shockproof | Yes |
| Optic - Fogproof | Yes |
| Optic - Battery Type | CR2032 |
| Weight | 0.320 kg |
Brand
Vector Optics
VictOptics
Specs
- Magnification: 1-4x
- Objective Lens: 20mm
- Ocular Lens Dia: 38mm / 1.5 inch
- Ocular Length: 52mm / 2.0 inch
- Tube Diameter: 25.4mm / 1 inch
- Exit Pupil: 20.0-5.0 mm
- Length: 235mm / 9.25”
- Weight (net): 320g / 11.3oz
- Eye Relief: 112-95mm / 4.4-3.7 inch
- Field of View: 68-23.8 feet@100yds
- Optics Coating: Fully-multi coated
- Reticle: VMD-2
- Click Value: 1/2MOA
- Evaluation Range: 200 MOA
- Windage Range: 200 MOA
- Parallax Setting: 50 Yards
- Finish: Black matte
- Illumination: 5 level R and G
- Battery Type: CR2032
- Length of middle turret part: 31mm (1.2 inch)
- Distance between middle turret parts to power ring: 56mm (2.2 inch)
- Shock tested to 500g, water resistant fully nitrogen purged
- High quality 6063 T6 aircraft grade aluminum
- Diopter compensation from fast-focus eyepiece -2 to +1.5

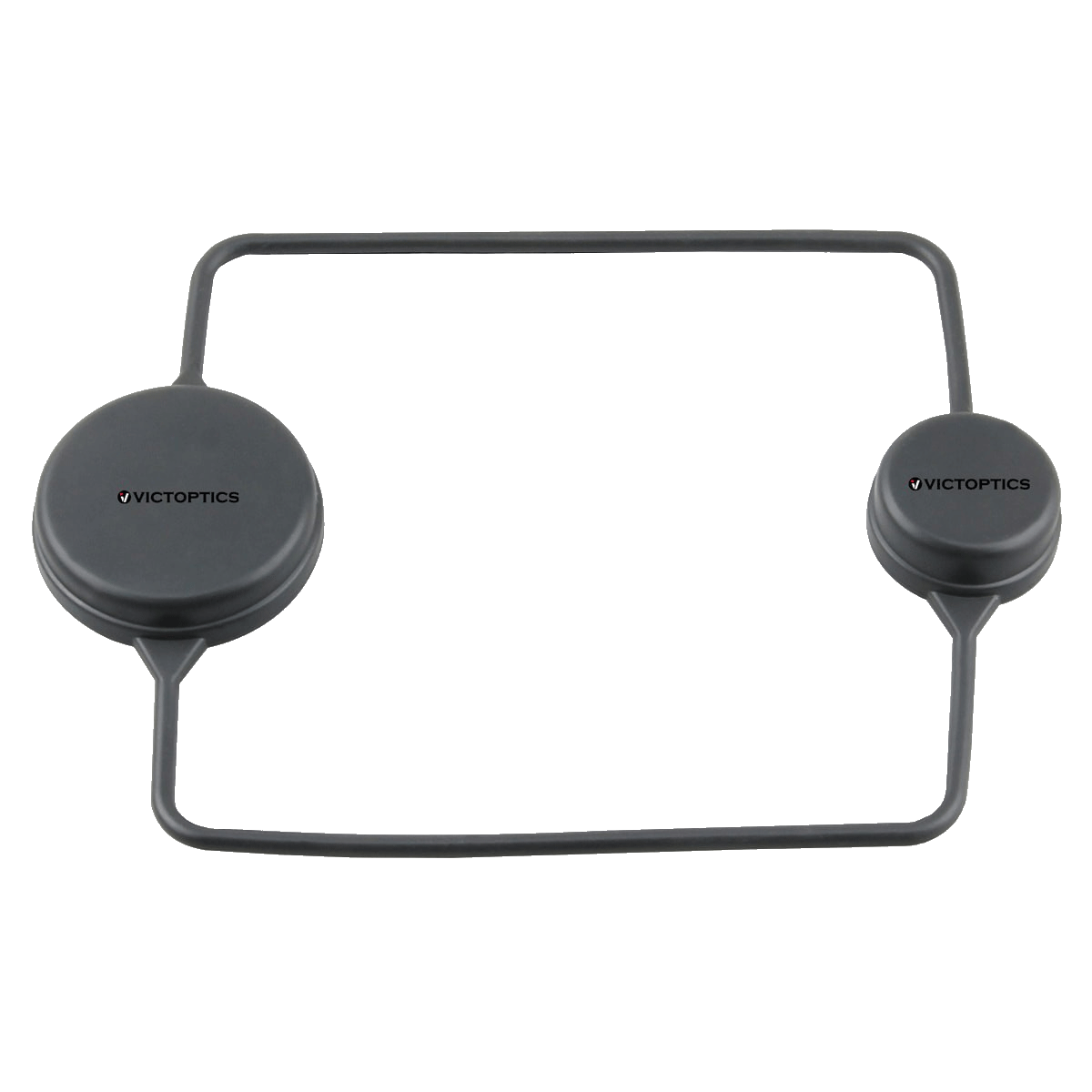

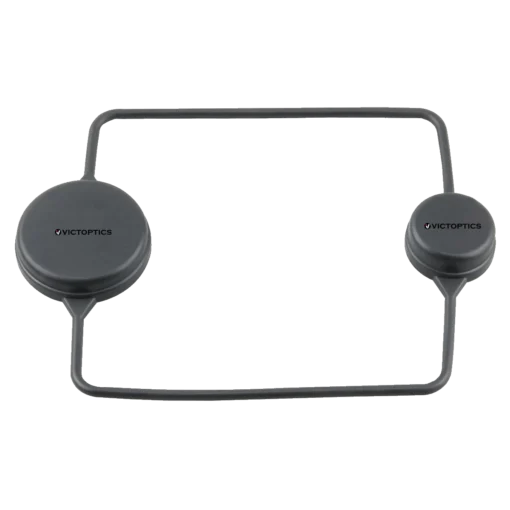

- Including items: one pair of 25.4mm weaver scope rings, throw lever, cleaning cloth, instruction, lens cap and packed in nice retail box
Vector Optics Warranty
Vector Optics Tailed VIP Lifetime Warranty
Vector Optics Continental, Taurus, Aston, Scrapper and Frenzy line products are covered by our T-VIP lifetime warranty. Read more HERE.
Five Years Limited Warranty
Your Vector Optics product is warranted free of defects in materials and workmanship for a period of 5 years from time of purchase by the original purchaser. Batteries are not covered under warranty. Read more HERE.
2-Year Warranty
All Vector Optics Owlset night vision devices and thermal imaging products are covered by a 2-year warranty. Read more HERE.
