Vixen ARTES Riflescope 5-30x56mm
Vixen ARTES Tactical Riflescope 5-30x56mm ED GLASS 34mm W/IR ELD20 Reticule sets standards in precision, quality, and durability. Its 6x optical system has fully multi-coated elements that deliver bright, crisp, and vivid images with reduced glare.

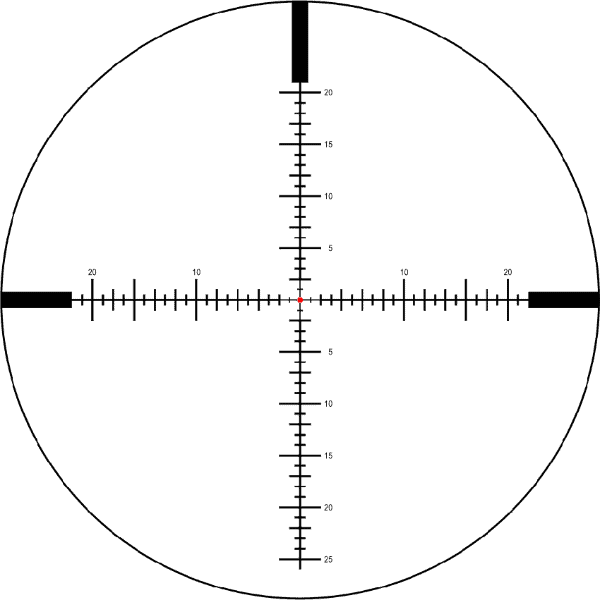

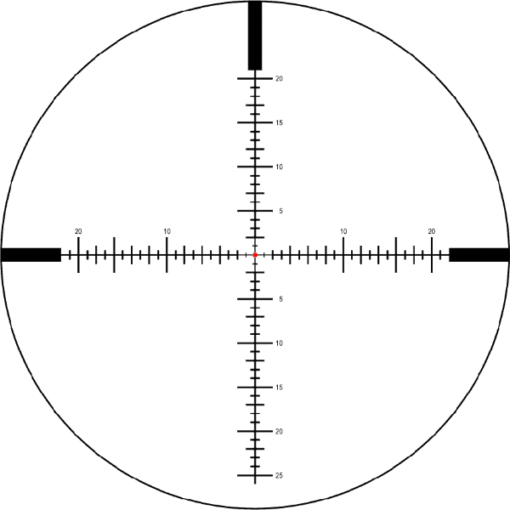

The second focal plane contains a glass-etched EDL 20 illuminated reticle that will empower you with laser-sharp aiming capability. This reticle offers a pattern that resembles an inverted German #4 reticle, consisting of three posts (one on the top and two on the sides) and a fine crosshair with a system of thin ranging bars and an illuminated center cross.
For exceptional precision while aiming, the reticle is also parallax-free from 10 yards to infinity, via a side focus parallax corrector knob. To account for the effects introduced by ballistics and winds, the scope offers windage and elevations adjustments with 1/8 MOA clicks and wide 100 MOA ranges.
Features: Vixen ARTES Riflescope 5-30x56mm
- 6x Magnification range
- Fully multi coated lenses for maximum image brightness and clarity
- Nitrogen purged for complete frog proof, waterproof performance
- Constructed of high quality aviation grade aluminum to ensure long lasting durability under extreme condition
- Rapid focus diopter adjustment design for improved target acquisition
- Illuminated, glass-etched, American style second focal plane reticle placement for precise aiming and long lasting performance
- Finger-tip adjustable, Zero-resettable Windage & Elevation knobs
FEATURES: Vixen ARTES Riflescope 5-30x56mm
- EDL 20 Reticle, 2nd Focal Plane
- Side Focus Parallax: 10 yd to Infinity
- 34mm Single-Piece Maintube
- 1/8 MOA Impact Point Correction
- 100 MOA Windage/Elevation Adjustment
- Tall Tactical, Graduated W/E Turrets
- High-Quality Aluminum Alloy Housing
- Fully Multi-Coated Lenses
- Water and Fogproof
- Made in Japan
SPECIFICATIONS: Vixen ARTES Riflescope 5-30x56mm
Magnification | 5-30x |
Objective Lens Diameter | 56mm |
Maintube Diameter | 34 mm |
Reticle | EDL 20 Reticle 2nd focal plane |
Field of View | 7.8-1.3 m at 100 m |
Parallax Correction | 9.14 m to infinity |
Eye Relief | 9.9 cm |
Exit Pupil Diameter | 11.2-1.9 mm |
Impact Point Correction | 1/8 MOA |
Windage Adjustment | 100 MOA |
Weatherproofing | Waterproof, nitrogen-filled fogproof |
Battery | 1 x CR-2032 battery |
Dimensions | 36.3 cm |
Weight | 975.2 g |
IN THE BOX: Vixen ARTES Riflescope 5-30x56mm
- Vixen Optics 5-30×56 V-III Artes SF Riflescope (EDL 20 Illuminated Reticle, Matte Black)
- CR-2032 Battery
- 2 x Lens Cap
